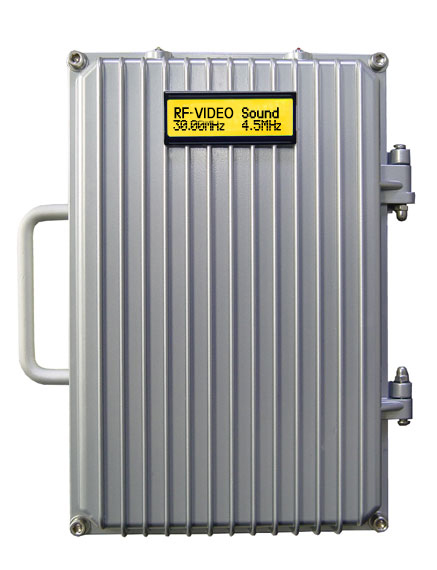

TVX-30900/1 SPECIAL VIDEO TRANSMITTER 30-900 MHz |
New Transmitter model TVX-30900/1 is a fully synthesized audio/video transmitter for wideband frequencies from 30 MHz- 920 MHz. It is a Military grade unit that covers the widest frequency UHF range. The RF power output power is 1000 mW or 10W (Model TVX-30900/H). It sends a crisp color picture and sound miles away. No special tuning is needed. Simply choose the frequency with two push-button switches. Digital display shows desired channel and sound carrier frequency (adjustable from 4.5-6.5 MHz). Special directional antenna is included.
Sold exclusively to Government agencies or Military forces.
Dimensions: 7.5 " X 11.0 " X 3.5 ".
SPECIFICATIONS:
| BATTERY POWER: 12.6 V |
EXTERNALLY CHANNEL SELECTOR |
| VIDEO INPUT: 1V |
SIZE: 7.5 " X 11.0 " X 3.5 " |
| NTSC/ PAL |
N FEMALE OR BNC ANTENNA |
| RF POWER: 1000 mW |
RANGE: 1 - 30 MILES DEPENDS ON ANTENNA |
| CURRENT CONSUMPTION:1400 mA/ 6000 mA / 12.6 V |
|
| |
|
|
10W AUDIO/VIDEO TRANSMITTER LX-430 FOR 433.25 MHz |
The new 433.25 MHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This transmitter has a single channels and 10 W RF power. This video transmitter works from 12 V- 14.4 V.
Dimensions: 6.0 " X 4.0 " X 2.0 ".
SPECIFICATIONS:
| BATTERY POWER: 12 - 14.4 V |
FREQUENCY: 433.25 MHz |
| RF POWER: 10 W |
SIZE: 6.0 " X 4.0 " X 2.0 " |
| NTSC/ PAL |
CRA FEMALE CONNECTOR |
| CURRENT CONSUMPTION: 4 A / 12 V |
|
|
| |
|
|
10W AUDIO/VIDEO TRANSMITTER LX-440 FOR 400 MHz BAND 10 CHANNELS |
The new 403.25 MHz – 469.25 MHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This transmitter has 10 easy to change channels and 10 W RF power. This video transmitter works from 12 V- 14.4 V.
Dimensions: 6.0 " X 4.0 " X 2.0 ".
SPECIFICATIONS:
| BATTERY POWER: 12 - 14.4 V |
CHANNELS: 1 |
| RF POWER: 10 W |
SIZE: 6.0 " X 4.0 " X 2.0 " |
| NTSC/ PAL |
FREQUENCY: 430 - 470 MHz |
| CURRENT CONSUMPTION: 4 A / 12 V |
|
|
| |
|
|
HIGH POWER 900 MHz VIDEO TRANSMITTER |
This video transmitter for 900 MHz is excellent solution for video surveillance or experiments. The transmitter LX-900B/10 has 10 W RF power and it comes in two different frequencies: 906 MHz or 916 MHz
Dimensions: 6.0" X 4.0 " X2.0".
SPECIFICATIONS:
| BATTERY POWER: 3 V-12 V |
CH 1, CH 2 |
| VIDEO INPUT: 1V |
SIZE: 6.0" X 4.0 " X2.0 |
| NTSC AND PAL |
RF POWER: 10 W |
| N TYPE ANTENNA CONNECTOR |
CURRENT CONSUMPTION: 4 A / 12 V |
|
| |
|
|
10W AUDIO/VIDEO TRANSMITTER LX-1700/10 FOR 1700-1800 MHz BAND 8 CHANNELS |
The new 1.7 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This transmitter has 8 easy to change channels and 10 W RF power. This video transmitter works from 12 V- 16 V.
Dimensions: 6.0 " X 4.0 " X 2.0 ".
SPECIFICATIONS:
| BATTERY POWER: 10W/12 V |
8 CHANNELS |
| VIDEO INPUT: 1V |
SIZE: 6.0 " X 4.0 " X 2.0 " |
| NTSC/ PAL |
RANGE: 16 MILES FROM THE AIR |
| CURRENT CONSUMPTION: 4,500 mA / 12 V |
|
|
| |
|
|
PROGRAMMABLE 100 W AUDIO/VIDEO TRANSMITTER LX-100PM FOR 1700-1900 MHz BAND |
The new 1.7 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. The new 100 W PROGRAMMABLE 1.7 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This video transmitter gives over 100 W RF power. This special audio/video transmitter is fully programmable from 1,690 MHz- 1,900 MHz. It has been designed for Aeronautic, Space experiments or Special Military applications. This audio/video transmitter must be mounted on a larger metal surface to cool it down. The special LCD programmer is included with the unit. This transmitter works from 12 VDC/ 22A.
Dimensions: 9.0 " X 2.5. " X 3.9 ".
SPECIAL ORDER AVAILABLE FOR MILITARY FORCES ONLY, SORRY NO EXPORT OUT OF THE USA
SPECIFICATIONS:
| BATTERY POWER: 12.6 V |
FREQUENCY: 1690 - 1900 MHz |
| OPERATING FREQUENCY: 2300-2500 MHz |
SIZE: 9.0 " X 2.5. " X 3.9 " |
| NTSC, PAL |
CHANNELS: FULLY PROGRAMMABLE |
| RF POWER: 100 W |
MAX. RANGE: OVER 60KM LOS |
| CURRENT CONSUMPTION: 22A/12V |
|
|
| |
|
|
10 W AUDIO/VIDEO TRANSMITTER LX-3000/10 FOR 2.4 GHz 8 CHANNELS |
The new 2.4 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This special audio/video sender has been designed for Aeronautic or Space experiments. LX-3000/10 has 8 channels in 2.3-2.5 GHz range.
Dimensions: 6.0 " X 4.0 " X 2.0 ".
SPECIFICATIONS:
| BATTERY POWER: 12 V |
DC VOLTAGE: 9-16V |
| OPERATING FREQUENCY: 2300-2500 MHz |
SIZE: 6.0 " X 4.0 " X 2.0 " |
| NTSC, PAL |
CHANNELS: CH1-8 |
| RF POWER: 10 W |
MAX. RANGE: OVER 40KM LOS |
| CURRENT CONSUMPTION: 4A/12V |
|
|
| |
|
|
40 W AUDIO/VIDEO TRANSMITTER LX-3000/40 FOR 2.4 GHz 8 CHANNELS |
The new 2.4 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range.This video transmitter gives over 40 W RF power. This special audio/video sender has been designed for Aeronautic or Space experiments. LX-3000/40 has 8 channels in 2.3-2.5 GHz range.This audio/video transmitters comes with a cooling fan.
Dimensions: 10.0 " X 4.0 " X 3.0 ".
SPECIFICATIONS:
| BATTERY POWER: 12 V |
CHANNELS: AGILE FROM 1 - 8 |
| RF POWER: 40 W |
SIZE: 10.0 " X 4.0 " X 3.0 " |
| NTSC, PAL SYSTEMS |
FREQUENCY: 2.3 - 2.5 GHz |
| CURRENT CONSUMPTION: 8-10A/ 12V |
|
|
| |
|
|
NEW PROGRAMABLE 100 W AUDIO/VIDEO TRANSMITTER LX-100P FOR 2.4 GHz |
The new 100 W PROGRAMMABLE 2.4 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This video transmitter gives over 100 W RF power. This special audio/video transmitter is fully programmable from 2,290 MHz- 2,500 MHz. It has been designed for Aeronautic, Space experiments or Special Military applications. This audio/video transmitter must be mounted on a larger metal surface to cool it down. The special LCD programmer is included with the unit. This transmitter works from 12 VDC/ 20A.
Dimensions: 9.0 " X 2.5. " X 3.9 ".
SPECIFICATIONS:
| BATTERY POWER: 12 V |
CHANNELS: AGILE CH FROM 2.3 - 2.5 GJz |
| RF POWER: 100 W |
SIZE: 9.0 " X 2.5. " X 3.9 " |
| NTSC, PAL SYSTEMS |
FREQUENCY: 2.3 - 2.5 GHz |
| CURRENT CONSUMPTION: 18-20A/ 12V |
|
|
| |
|
|
10W AUDIO/VIDEO TRANSMITTER LX-5800/H10 8 CHANNELS FOR 5.8 GHz |
The new 5.8 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This transmitter has 8 easy to change channels and 10 W RF power. It works from 9 V- 16 V.
Dimensions: 6.0 " X 4.0 " X 2.0 ".
SPECIFICATIONS:
| BATTERY POWER: 12.6 V |
CHANNELS: 8 |
| RF POWER: 10 W |
SIZE: .0 " X 4.0 " X 2.0 " |
| NTSC, PAL SYSTEMS |
FREQUENCY: 5.7 - 5.8 GHz |
| CURRENT CONSUMPTION: 3480mA/ 12V |
|
|
| |
|
|
SPECIAL PORTABLE AUDIO/VIDEO TRANSMITTER 1700 MHz And 2400 MHz |
This special dual-band video transmitter gives over 5 W RF power in 1700-1900 MHz and 2300-2500 MHz bands. This portable video transmitter has excellent prformances and great range (over 10 miles with a high gain antennas). It is fully mobile and works with 12 VDC (car battery). This ransmitter is capable of transmitting two separate videocameras on same time.
Dimensions: 10.0 " X 4.0 " X 3.0 ".
Recommended Receiver: RMX-2000 and RMX-2500
SPECIFICATIONS:
| POWER SUPPLY: DC 12V |
CHANNELS: 8 + 8 |
| RF POWER: 5 W + 5 W |
SIZE: 10.0 " X 4.0 " X 3.0 " |
| SMA CONNECTORS |
FREQUENCY: 1.7 - 1.9 GHz, 2.3 - 2.5 GHz |
| CURRENT CONSUMPTION: 3400mA |
|
|
| |
|
|
|
