KX-4010

Model:KX-4010

Model:KX-9010

Data sheet PDF pdf
Data sheet PDF pdf
Buy Online

WORLD SMALLEST VIDEO TRANSMITTER FOR ALL UHF CHANNELS & 900 MHz BAND IN 12 CHANNELS
A "Baracchino" is back, the famous TV smallest video transmitter from seventies originaly designed in Europe is back. The world's smallest audio/video transmitter KX-4010 is a special design for all UHF frequencies from 430-801 MHz. This video transmitter is very small, it measures 1.5"x 0.8". It is easy to use. Required DC power is 9 V-12 V/ 120 mA. This audio/video transmitter is great for video surveillance applications. AVAILABLE IN PAL or NTSC
Dimensions: 0.8" X 1.5"

Model KX-4010 covers all UHF TV channels and model KX-9010 covers also 900 MHz band in 12 channels.

SPECIFICATIONS:
DC POWER: 9 - 12 V CURRENT CONSUMPTION: 128 mA
FREQUENCY: 430 MHz- 918 MHz! NTSC OR PAL SYSTEM
SIZE: 0.8" X 1.5"


XLT-902-916

Model:XLT-902 XLT-916
Data sheet PDF pdf
Buy Online

900 MHz VIDEO TRANSMITTERS

This small low power video transmitter will send an excellent image from camera to the receiver 900 MHz. This unit measures only 0.9" X 0.6" X 0.12". You can use this transmitter with any video source 1V/ 75 ohm. The range is app. 300-500 ft maximum. This unit comes with a one-year warranty.

SPECIFICATIONS:
BATTERY POWER: 9 V-12 V RANGE: up to 1000 ft max
VIDEO INPUT: 1 V RCA FREQUENCY RANGE: 433.92 MHz
CURRENT CONSUMPTION: 48 mA/ 9 V HIGH QUALITY PICTURE
BUILT-IN ANTENNA PAL, NTSC SYSTEMS
SIZE: 0.9" X 0.6 " X 0.12"


SPX-916

Model:SPX-916
Data sheet PDF pdf
Buy Online

900 MHz VIDEO TRANSMITTER 50 mW RF POWER

This video transmitter is just perfect for video surveillance or any other applications. The maximum range is app. 1000 ft using special receiver DCV 900 and high gain antenna on the receiving end. RF output power is 50 mW. The gain antenna on the receiving end will increase the range. It measures only 0.7" X 0.6" X 0.2". The RF power is adjustable using the potentiometer on the board. You can use this transmitter with the any video source 1V/ 75 ohm. This video transmitter comes with a full 1 year warranty as well.

SPECIFICATIONS:

BATTERY POWER: 9 V-12 V RANGE: 1000 ft max
VIDEO INPUT: 1 V RCA FREQUENCY: 916 MHz
CURRENT CONSUMPTION: 48 mA/ 12V HIGH QUALITY PICTURE
BUILT-IN ANTENNA PAL, NTSC SYSTEMS
SIZE: 0.7" X 0.6 " X 0.2"


HPX-916

Model:HPX-916
Data sheet PDF pdf
Buy Online

900 MHz VIDEO TRANSMITTER 250 mW RF POWER

This is an excellent high power video transmitter with tested RF power of 250 mW. This transmitter will transmit over 3000 ft LOS. The size of this transmitter is just unbelievable - it measures only 1.25" X 0.6" X 0.25".

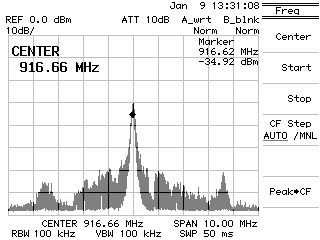

hpx-916 spx916hookSpectrum analyzer graph for HPX-916(measured at 6m with dipole antenna)

SPECIFICATIONS:
POWER SUPPLY: 12V RANGE 3000 ft
VIDEO INPUT: 1 V RCA FREQUENCY 916 MHz
CURRENT CONSUMPTION: 120 mA/ 12 V HIGH QUALITY PICTURE
BUILT-IN ANTENNA PAL, NTSC SYSTEMS
SIZE: 1.25" X 0.6 " X 0.25"

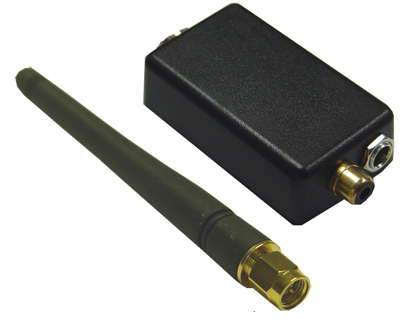

KX-900D

Model:KX-900D
Data sheet PDF pdf
Buy Online

NEW 900 MHz VIDEO TRANSMITTER 250 mW RF POWER

This small video transmitter for UHF is an excellent solution for video surveillance or experiments. The transmitter KX-900D is a 12 channels unit. It has 80 mW RF power and the dimensions is 2.4" X 1.5 "X 0.7". This transmitter sends a perfect color or B&W image to 900 MHz receiver including sound portion as well.
Recommended receiver is M-808.

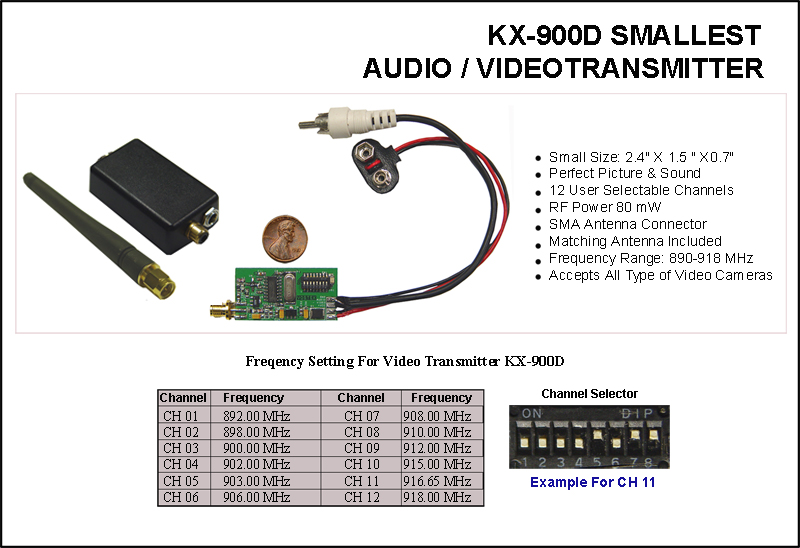

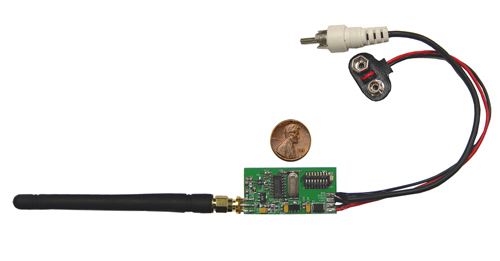

more pictures:
KX-900DKX-900D

SPECIFICATIONS:
RF POWER: 80 mW IMPEDANCE: 50 ohms
SIZE: 2.4" X 1.5 "X 0.7" FREQUENCY: 890 - 918 MHz
CURRENT CONSUMPTION: 120 mA/ 12 V SMA ANTENNA CONNECTOR
CHANNELS: 12 PAL, NTSC SYSTEMS


LX-900B

Model:LX-900b
Data sheet PDF pdf
Buy Online

900 MHz AUDIO/VIDEO TRANSMITTER 1.8 W RF POWER
LX-900B is a high power video transmitter using negative AM modulation same as a broadcast TV. Tested RF power is 1.8 W. This transmitter is enclosed in a metal box size: 5" X 4" X 1.2". This transmitter is extremely stable. It has built-in VSWR and temperature protection as well. This unit is available for Law enforcement and Military. Recommended receiver is RM 900.

Model LX-900A has an audio portion.

SPECIFICATIONS:
BATTERY POWER: 12 V SIZE: 5" X 4" X 1.2"
VIDEO INPUT: 1 V RCA RANGE: 3000 ft+
CHANNELS: 2 FREQUENCY: 916.6 MHz, 906 MHz
CURRENT CONSUMPTION 1.5 A / 12 V HIGH QUALITY PICTURE
BNC ANTENNA CONNECTOR PAL, NTSC SYSTEMS

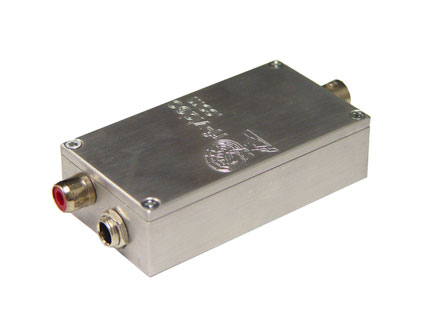

PX-916

Model:PX-916
Data sheet PDF pdf
Buy Online

900 MHz VIDEO TRANSMITTER AVAILABLE IN TWO CHANNELS

This small video transmitter for 900 MHz is excellent solution for video surveillance or experiments. The transmitter PX-916 is a single channel unit. It has 300 mW RF power and it comes in four different frequencies: 902 MHz, 915 MHz or 916.6 MHz. Please choose one channel.
Dimensions: 2.8" X 1.5 " X 0.75".

SPECIFICATIONS:
BATTERY OPERATED: 9 V - 12 V SIZE: 2.8" X 1.5 " X 0.75"
VIDEO INPUT: 1 V / 75 ohms BNC ANTENNA CONNECTOR
CURRENT CONSUMPTION: 120mA FREQUENCY 902 MHz 915 MHz, 916.6 MHz
RF OUTPUT 50 ohms


LX-900B/12

Model:LX-900b/12
Data sheet PDF pdf
Buy Online

HIGH POWER 900 MHz VIDEO TRANSMITTER 12 cHANNELS
This video transmitter for 900 MHz has 12 selectable channels and it is excellent solution for video surveillance or experiments. The transmitter LX-900B/12 has 1.8 W RF power.
Dimensions: 5.0" X 4.0 " X1.2".

SPECIFICATIONS:
FREQUENCY: 900 MHz SIZE: 5" X 4" X 1.2"
VIDEO INPUT: 1 V RCA CHANNELS: 12 SELECTABLE CH
DC VOLTAGE: 12 V - 14.4 V VIDEO FORMAT: PAL AND NTSC
CURRENT CONSUMPTION: 1,200 mA / 12 V BATTERY POWER: 12V


LX-900B-10

Model:LX-900b-10
Data sheet PDF pdf
Buy Online

HIGH POWER 900 MHz VIDEO TRANSMITTER
This video transmitter for 900 MHz is excellent solution for video surveillance or experiments. The transmitter LX-900B/10 has 10 W RF power and it comes in two different frequencies: 906 MHz or 916 MHz
Dimensions: 6.0" X 4.0 " X2.0".

SPECIFICATIONS:
FREQUENCY: 906 MHz, 916 MHz SIZE: 6 " X 4" X 2 "
N TYPE CONNECTOR CHANNELS: CH 1, CH 2
DC VOLTAGE: 12 V - 14.4 V VIDEO FORMAT: PAL AND NTSC
CURRENT CONSUMPTION: 4 A / 12 V


LX-900B10-12

Model:LX-900b10-12
Data sheet PDF pdf
Buy Online

HIGH POWER 900 MHz AUDIO/VIDEO TRANSMITTER
This video transmitter for 900 MHz is excellent solution for video surveillance or long grange video applications. The transmitter LX-900B/10 has 10 W RF power and it comes in twelve different selectable frequencies from: 890 MHz to 918 MHz. This transmitter uses AM modulation and it has built-in audio carrier.
Recommended receiver is M-808 or RM-900B.

SPECIFICATIONS:
FREQUENCY: 900 MHz SIZE: 5" X 4" X 1.2"
RF POWER: 10 W CHANNELS: 12 SELECTABLE CH
DC VOLTAGE: 12 V - 14.4 V VIDEO FORMAT: PAL AND NTSC
CURRENT CONSUMPTION: 3,200 mA / 12 V


900SYS

Model:900sys
Data sheet PDF pdf
Buy Online

HIGH POWER 900 MHz VIDEO TRANSMITTER 12 cHANNELS
This video surveillnace system is recommended for Law enforcement agencies. The complete solution comes with transmitter, receiever and high gain antennas. This system is great for closed operations from 300-600 ft range even trough the walls.

SPECIFICATIONS:
FREQUENCY: 900MHz - 927 MHz Size: 8" X 6" X 3.5"
ANTENNA: OMNI DIRECTIONAL 5 dB CHANNELS: 2 CHANNELS
DC VOLTAGE: 12 V - 14.4 V VIDEO FORMAT: PAL AND NTSC
CURRENT CONSUMPTION: 385 mA / 12 V
