5.8 GHz WORLD'S SMALLEST VIDEO TRANSMITTER |
This small video transmitter for 5.8 GHz is excellent for surveillance or experiments! This transmitter measures only: 0.6"x 0.6"x 0.25". It is the smallest video transmitter on the market available for the public. It works from 5 V and takes only 25 mA.
SPECIFICATIONS:
| BATTERY OPERATED 4.7 V- 8 V |
BUILT-IN ANTENNA |
| VIDEO INPUT: 1V |
NTSC, PAL or SECAM TV SYSTEMS |
| CURRENT CONSUMPTION: 25 mA |
VIDEO SIGNAL: 1V/ 75 ohm |
| SMALLEST SIZE: 0.6" X 0.6" X 0.25" |
RF POWER LEVEL: 94 dBuV/m@3m |
|
| |
|
|
5.8 GHz SMALLEST VIDEO TRANSMITTER |
This small video transmitter for 5.8 GHz is excellent for surveillance or experiments! This transmitter has 8 channles. It works from 5 V .
Dimensions: 1.8 " X 1 " X 0.4 ".
SPECIFICATIONS:
| SIZE:1.8 " X 1 " X 0.4 " |
AUDIO INPUT: 300 mV |
| FREQUENC: 5750 - 5850 MHz |
SIZE: 1.8 " X 1 " X 0.4 " |
| NTSC, PAL SYSTEMS |
BATTERY POWER: 5 V - 6 V |
| CURRENT CONSUMPTION: 150 mA |
|
|
| |
|
|
HIGH POWER 5.8 GHz SMALLEST VIDEO TRANSMITTER |
This small video transmitter for 5.8 GHz is excellent for surveillance or experiments! This transmitter has 8 internally selectable channels. It works from 9 -12 V. The RF power output is 200 mW.
Dimensions: 1.8 " X 1 " X 0.4 ".
SPECIFICATIONS:
| BATTERY POWER: 9 V- 12 V |
POWER OUTPUT: 200 mW |
| VIDEO INPUT: 1V |
NTSC, PAL TV SYSTEMS |
| CURRENT CONSUMPTION: 350 mA |
SMALLEST SIZE: 1.8 " X 1 " X 0.4 " |
|
| |
|
|
HIGH POWER 5.8 GHz SMALL VIDEO TRANSMITTER |
This small video transmitter for 5.8 GHz is excellent for surveillance or experiments! This transmitter has 8 internally selectable channels. It works from 9 -12 V. The RF power output is 250 mW.
Dimensions: 2.8 " X 1.5 " X 0.75 ".
SPECIFICATIONS:
| BATTERY POWER: 9 V- 12 V |
POWER OUTPUT: 250 mW |
| VIDEO INPUT: 1V |
NTSC, PAL TV SYSTEMS |
| CURRENT CONSUMPTION: 360 mA |
SMALLEST SIZE: 2.8 " X 1.5 " X 0.75" |
|
| |
|
|
8 CHANNELS 5.8 GHz AUDIO/VIDEO TRANSMITTER LX-5800/T |
The new 5.8 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This transmitter has 8 easy to change channels and 50 mW RF power. It works from 9 V- 16 V.
SPECIFICATIONS:
| SIZE: 4.7" X 3.0 " X 1.0 " |
TEMPERATURE RANGE: -20+75 °C |
| CURRENT CONSUMPTION: 500 mA/ 12 V |
SMA ANTENNA CONNECTOR |
| RF POWER OUT: 50 mW |
RANGE: 3 MILES FROM THE AIR |
| AUDIO INPUT: 300 m V |
FREQUENCY RANGE 5,700 MHz- 5,800 MHz |
|
| |
|
|
8 CHANNELS 5.8 GHz AUDIO/VIDEO TRANSMITTER LX-5800/C |
| The new 5.8 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This transmitter has 8 easy to change channels and 500 mW RF power. It works from 9 V- 16 V.
SPECIFICATIONS:
| SIZE: 5.0" X 3.0 " X 1.0 " |
TEMPERATURE RANGE -20+78 °C |
| CURRENT CONSUMPTION: 800 mA/ 12 V |
SMA ANTENNA CONNECTOR |
| NTSC, PAL or SECAM SYSTEMS |
8 CHANNELS |
| RF POWER: 500 mW |
FREQUENCY: 5,700 MHz- 5,800 MHz |
|
| |
|
|

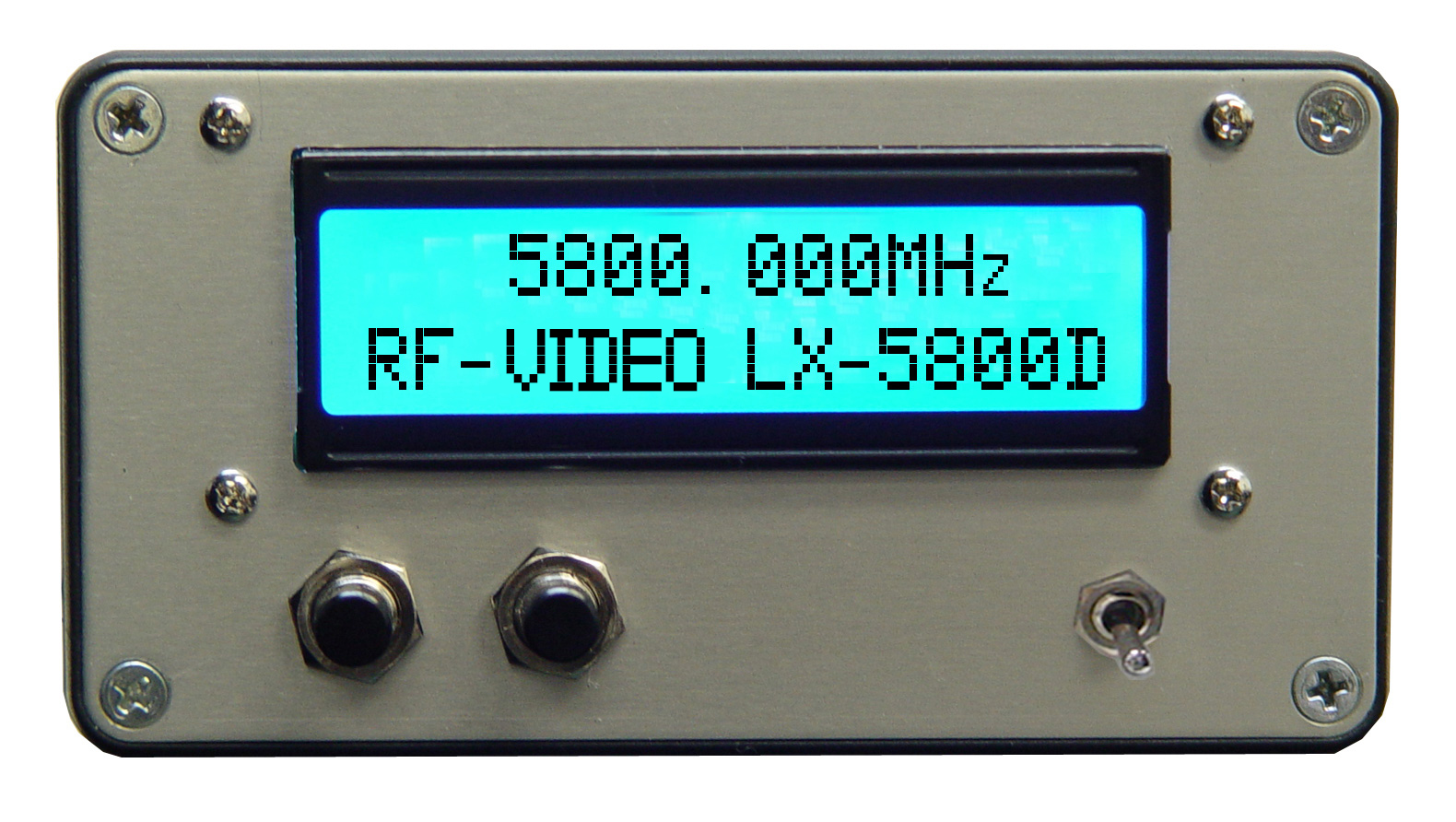

5.8 GHzAUDIO/VIDEO TRANSMITTER LX-5800D all CHANNELS WITH DIGITAL DISPLAY |
The new 5.8 GHz Audio/Video transmitter is a high power audio video transmitter made for Military applications capable to work in extremely low or high temperature range. This transmitter has all channels and 600 mW RF power. It works from 9 V- 16 V.
Dimensions: 5.0 " X 4.0 " X 2.0 ".
SPECIFICATIONS:
| SIZE: 5.0" X 4.0 " X 2.0 " |
TEMPERATURE RANGE -40+78 °C |
| CURRENT CONSUMPTION: 1000 mA / 12 V |
SMA ANTENNA CONNECTOR |
| RF POWER: 600 mW |
LONG RANGE |
| AUDIO INPUT 300 m V |
FREQUENCY: 5690 MHz – 5925 MHz |
|
| |
|
|
5.8 GHzAUDIO/VIDEO TRANSMITTER LX-5800/2 8 CHANNELS |
The new 5.8 GHz Audio/Video transmitter is a high power audio video transmitter made for Military applications capable to work in extremely low or high temperature range. This transmitter has 8 channels and 2 W RF power. It works from 9 V- 16 V.
SPECIFICATIONS:
| SIZE: 6.0" X 3.0 " X 1.0 " |
TEMPERATURE RANGE -20+78 °C |
| CURRENT CONSUMPTION: 900 mA/ 12 V |
SMA ANTENNA CONNECTOR |
| RF POWER OUT 2000 mW |
LONG RANGE |
| AUDIO INPUT 300 m V |
FREQUENCY: 5,700 MHz- 5,800 MHz |
|
| |
|
|
5.8 GHzAUDIO/VIDEO TRANSMITTER LX-5800HD all CHANNELS WITH DIGITAL DISPLAY |
The new 5.8 GHz Audio/Video transmitter is a high power audio video transmitter made for Military applications capable to work in extremely low or high temperature range. This transmitter has all channels and 2 W RF power. It works from 9 V- 16 V.
Dimensions: 5.0 " X 4.0 " X 2.0 ".
SPECIFICATIONS:
| SIZE: 5.0" X 4.0 " X 2.0 " |
TEMPERATURE RANGE -40+78 °C |
| CURRENT CONSUMPTION: 1200 mA / 12 V |
SMA ANTENNA CONNECTOR |
| RF POWER: 2 W |
LONG RANGE |
| AUDIO INPUT 300 m V |
FREQUENCY: 5690 MHz – 5925 MHz |
|
| |
|
|
5W AUDIO/VIDEO TRANSMITTER LX-5800/H 8 CHANNELS |
The new 5.8 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This transmitter has 8 easy to change channels and 5500 mW RF power. It works from 9 V- 16 V.
Dimensions: 6.0 " X 4.0 " X 2.0 ".
SPECIFICATIONS:
| SIZE:6.0" X 4.0 " X 2.0 " |
TEMPERATURE RANGE -40+78 °C |
| CURRENT CONSUMPTION: 1480 mA/ 12 V |
SMA ANTENNA CONNECTOR |
| RF POWER OUT: 5500 mW |
LONG RANGE |
| AUDIO INPUT 300 m V |
FREQUENCY: 5,700 MHz- 5,800 MHz |
|
| |
|
|
5.8 GHzAUDIO/VIDEO TRANSMITTER LX-5800HPD all CHANNELS WITH DIGITAL DISPLAY |
The new 5.8 GHz Audio/Video transmitter is a high power audio video transmitter made for Military applications capable to work in extremely low or high temperature range. This transmitter has all channels and 5 W RF power. It works from 9 V- 16 V.
Dimensions: 6.0 " X 4.0 " X 2.0 ".
SPECIFICATIONS:
| SIZE: 6.0" X 4.0 " X 2.0 " |
TEMPERATURE RANGE -40+78 °C |
| CURRENT CONSUMPTION: 1600 mA / 12 V |
SMA ANTENNA CONNECTOR |
| RF POWER: 5 W |
LONG RANGE |
| AUDIO INPUT 300 m V |
FREQUENCY: 5690 MHz – 5925 MHz |
|
| |
|
|
10W AUDIO/VIDEO TRANSMITTER LX-5800/H10 8 CHANNELS |
The new 5.8 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This transmitter has 8 easy to change channels and 10 W RF power. It works from 9 V- 16 V.
Dimensions: 6.0 " X 4.0 " X 2.0 ".
SPECIFICATIONS:
| SIZE: 6.0" X 4.0 " X 2.0 " |
TEMPERATURE RANGE -20+75 °C |
| CURRENT CONSUMPTION: 3480 mA / 12 V |
SMA ANTENNA CONNECTOR |
| RF POWER: 10 W |
LONG RANGE |
| DC POWER: 12 - 14.4 V |
FREQUENCY: 5700 MHz- 5800 MHz |
|
| |
|
|
15W AUDIO/VIDEO TRANSMITTER LX-5800/H15 8 CHANNELS |
|
The new 5.8 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This transmitter has 8 easy to change channels and 15 W RF power. It works from 9 V- 16 V.
Dimensions: 6.0 " X 4.0 " X 2.0 ".
SPECIFICATIONS:
| SIZE: 6.0" X 4.0 " X 2.0 " |
TEMPERATURE RANGE -20+75 °C |
| CURRENT CONSUMPTION: 3590 mA / 12 V |
SMA ANTENNA CONNECTOR |
| RF POWER: 15 W |
LONG RANGE |
| DC POWER: 12 - 14.4 V |
FREQUENCY: 5700 MHz- 5800 MHz |
|
| |
|
|
|
