	Our Lab and Engineering staff will give you an excellent service.Custom designs are available upon request. Please send your inquiries to: info@rf-video.com

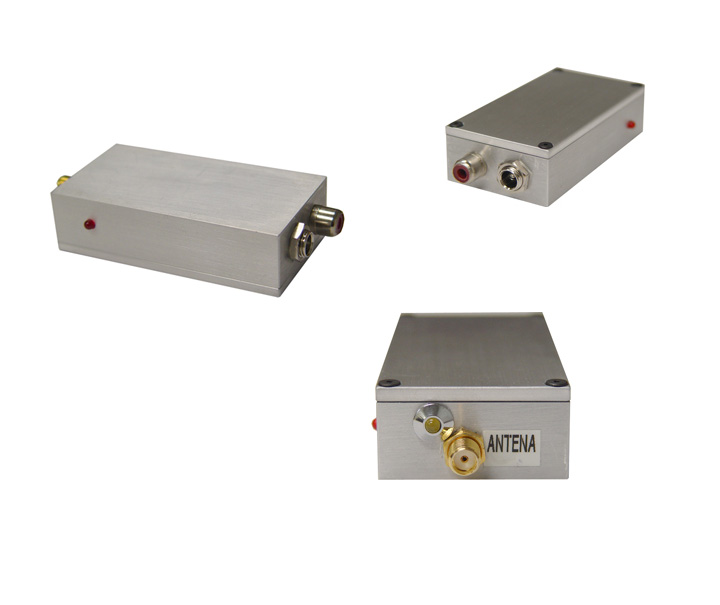

Model:SDX-54

Data sheet PDF

5.4 GHz WORLD'S SMALLEST VIDEO TRANSMITTER

This small video transmitter for 5.4 GHz is excellent for surveillance or experiments. It works from 9-12 V and takes 125 mA. This transmitter has 10 mW output power.
Dimensions: 2.4 " X 1.4 " X0.5 ".

SPECIFICATIONS:

BATTERY POWER: 9 V-12 V	FREQUENCY: 5400 MHz
VIDEO INPUT: 1V	SIZE: 2.4 " X 1.4 " X0.5 "
NTSC, OR PAL SYSTEMS	SMA ANTENNA CONNECTOR
RF POWER LEVEL: 10 mW or 250 mW	RANGE UP TO: 1000 ft
CURRENT CONSUMPTION: 125 mA / 12 V

Model:SDX-54b

Data sheet PDF

5.4 GHz WORLD'S SMALLEST VIDEO TRANSMITTER

This small video transmitter for 5.4 GHz is excellent for surveillance or experiments. It works from 9-12 V and takes 325 mA. This transmitter has 250 mW output power.
Dimensions: 2.4 " X 1.4 " X0.5 ".

SPECIFICATIONS:

BATTERY POWER: 9 V-12 V	FREQUENCY: 5400 MHz
VIDEO INPUT: 1V	SIZE: 2.4 " X 1.4 " X0.5 "
NTSC, OR PAL SYSTEMS	SMA ANTENNA CONNECTOR
RF POWER LEVEL: 94 dBuV/m@3m	RANGE UP TO: 1000 ft
CURRENT CONSUMPTION: 325 mA/ 12V

Model:LX-5400/5

Data sheet PDF

5.4 GHz AUDIO/VIDEO TRANSMITTER LX-5400/5 8 CHANNELS

The new 5.4 GHz Audio/Video transmitter is a high power audio video transmitter made for Military applications capable to work in extremely low or high temperature range. This transmitter has 8 channels and 5 W RF power. It works from 9 V- 16 V.
Dimensions: 6.0 " X 3.0 " X 1.0 ".

SPECIFICATIONS:

BATTERY POWER: 9 V-16 V	FREQUENCY: 5400 MHz
CHANNELS: 8	SIZE: 6.0 " X 3.0 " X 1.0 "
RF POWER: 5 W
