| APPLICATIONS AND MEDICAL RESEARCH The new 1.9 GHz video transmitter is a special design for security applications and medical research. It's world's smallest size makes it the most competitive in the market.

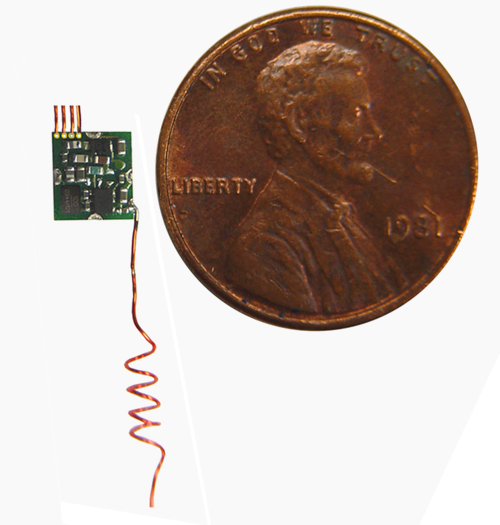

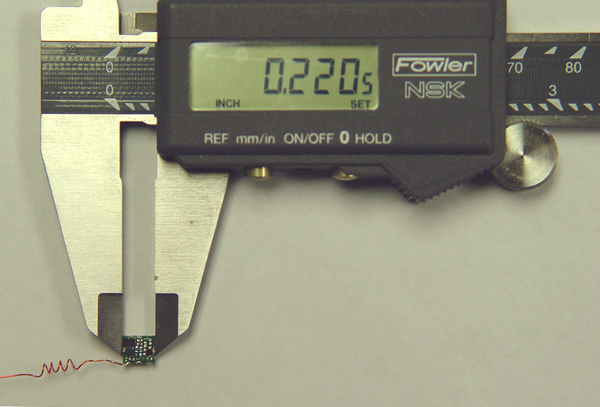

Dimensions: 0.25" X 0.15" X 0.25".
-unit on the scale weight 0.5 grams
connection diagram for DX-5 transmitter
SPECIFICATIONS:
| DC POWER: 3.6 V - 8 V |
FREQUENCY: 1,980 MHz |
| VIDEO INPUT: 1V |
SIZE: 0.25" X 0.15" X 0.25". |
| CURRENT CONSUMPTION: 8 mA / 5 V |
ANTENNA INCLUDED |
|
