WORLD SMALLEST VIDEO TRANSMITTER FOR 1700-1800 MHz BAND |
The new small 1.7 GHz Audio/Video transmitter is a special design for very small flying models. This is a single channel low power video transmitter. It weighs only 1 gram. It works from 3.6-9 V.
SPECIFICATIONS:
| SIZE: 0.3" X 0.2 " X 0.25 " |
TEMPERATURE RANGE: -0+50 °C |
CURRENT CONSUMPTION: 10 mA/ 3.6 V
|
ANTENNA INCLUDED |
| RF POWER OUT: 1 mW |
RANGE: 1000 ft FROM THE AIR |
| NO AUDIO |
FREQUENCY: 1,710 MHz- 1,850 MHz |
|
| |
|
|
LOW POWER VIDEO TRANSMITTER SDX-1700 FOR 1700-1800 MHz BAND |
| The new small 1.7 GHz Audio/Video transmitter is a special low power design. This transmitter is a single channel unit. It has 1 mW RF power. It works from 6 V - 12 V. Weight of this transmitter is 2 grams only.
SPECIFICATIONS:
| SIZE:0.5" X 0.12 " X 0.6 " |
TEMPERATURE RANGE: -26+78 °C |
| CURRENT CONSUMPTION: 160 mA/ 12 V |
SMA ANTENNA CONNECTOR |
| RF POWER OUT: 100 mW |
RANGE 3 MILES FROM THE AIR |
| AUDIO INPUT: 300 m V |
| FREQUENCY: 1,710 MHz- 1,850 MHz |
|
|
| |
|
|
VIDEO TRANSMITTER FOR 1.7 GHz 6 CHANNELS |
This is a new audio/video transmitter for security applications for 1.7 GHz - 1.8 GHz range. The new transmitter model MX-1700B is fully syntesized unit with 6 easy to change channels. Antenna connector is an SMA. Size of this transmitter is only 1.7"x 1"x 0.4".
SPECIFICATIONS:
| POWER SUPPLY 10V-12V |
RANGE up to 2 MILES FROM THE AIR |
| VIDEO INPUT 1 V RCA |
FREQUENCY RANGE 1.7 - 1.8 GHz |
| RF POWER 100 mW |
POLARITY PROTECTED |
| CURRENT CONSUMPTION: 160 mA/ 12 V |
SIZE: 1.7 " X 1 " X 0.4 " |
| SMA ANTENNA CONNECTOR |
PAL, NTSC SYSTEMS |
|
| |
|
|
RF AMPLIFIER AMP-1700B FOR 1700-1800 MHz BAND |
The new smallest 1 W 1.7-1.9 GHz amplifier is an excellent match for MX-1700B audio-video transmitter. It's been used for Military applications capable to work in extremely low or high temperature range. This amplifier needs 40-100 mW input power for the maximum of 1.2 W output RF power. This amplifier is a great option for small Airborne surveillance systems and extended range.
SPECIFICATIONS:
| SIZE:1.5 ”x 0.6 ” x 0.2 ” |
DC VOLTAGE: 5 V |
| CURRENT CONS. 650 mA/ 5 V |
SMA ANTENNA CONNECTOR |
| RF POWER OUT 1200 mW |
IMPEDANCE: 50 ohms |
| POLARITY PROTECTED |
| FREQUENCY: 1,710 MHz- 1,850 MHz |
|
|
| |
|
|
1W AUDIO/VIDEO TRANSMITTER LX-1700 FOR 1700-1850 MHz BAND 8 CHANNELS |
The new 1.7 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This transmitter has 8 easy to change channels and 1 W RF power. It works from 9 V- 16 V.
Dimensions: 4.72 " X 3.06 " X 1.07 ".
SPECIFICATIONS:
| SIZE: 4.72 " X 3.06 " X 1.07 " |
PAL, NTSC SYSTEM |
| CURRENT CONSUMPTION: 800 mA / 12 V |
SMA ANTENNA CONNECTOR |
| RF POWER: 1 W |
RANGE: OVER 6 km LOS |
| IMPEDANCE: 50 ohms |
OPERATING FREQUENCY: 1730-1850 MHz |
|
| |
|
|
1.5W AUDIO/VIDEO TRANSMITTER LX-1700/2 FOR 1700-1850 MHz BAND 8 CHANNELS, MIL GRADE |
The new 1.7 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This transmitter has 8 easy to change channels and 1.5 W RF power. It works from 9 V- 16 V.
Dimensions: 6.0 " X 3.0 " X 1.0 ".
SPECIFICATIONS:
| SIZE: 6.0 " X 3.0 " X 1.0 " |
CHANNELS: CH 1 - CH 8 |
| CURRENT CONSUMPTION: 1000 mA / 12 V |
SMA ANTENNA CONNECTOR |
| BATTERY POWER: 12 V |
DC VOLTAGE: 12 V - 14 V |
| IMPEDANCE: 50 ohms |
FREQUENCY: 1,700 MHz- 1,900 MHz |
|
| |
|
|
3W AUDIO/VIDEO TRANSMITTER LX-1700/3 FOR 1700-1850 MHz BAND 8 CHANNELS |
The new 1.7 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This transmitter has 8 easy to change channels and 3 W RF power. It works from 9 V- 16 V.
Dimensions: 4.72 " X 3.06 " X 1.07 ".
SPECIFICATIONS:
| SIZE: 4.72 " X 3.06 " X 1.07 " |
CHANNELS: CH 1 - CH 8 |
| CURRENT CONSUMPTION: 550 mA / 12 V |
SMA ANTENNA CONNECTOR |
| RF POWER 3 W |
RANGE OVER 6 km LOS |
| AUDIO INPUT 300 m V |
FREQUENCY: 1730 -1850 MHz |
|
| |
|
|
5W AUDIO/VIDEO TRANSMITTER LX-1700/5M FOR 1700-1850 MHz BAND 8 CHANNELS |
SPECIAL EDITION.
The new 1.7 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This transmitter has 8 easy to change channels and 5 W RF power. It works from 12 V- 16 V.
Dimensions: 6.0 " X 3.0 " X 1.0 ".
SPECIFICATIONS:
| SIZE: 6.0 " X 3.0 " X 1.0 " |
CHANNELS: ON BOARD SELECTABLE |
| CURRENT CONSUMPTION: 2000 mA / 12 V |
N OR SMA ANTENNA CONNECTOR |
| RF POWER: 5 W |
RANGE: 16 MILES FROM THE AIR |
| AUDIO LEVEL: 300 m V |
FREQUENCY: 1,700 MHz- 1,900 MHz |
|
| |
|
|
5W AUDIO/VIDEO TRANSMITTER LX-1700/5 FOR 1700-1850 MHz BAND 8 CHANNELS |
The new 1.7 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This transmitter has 8 easy to change channels and 5 W RF power. It works from 9 V- 16 V.
Dimensions: 6.0 " X 4.0 " X 2.0 ".
SPECIFICATIONS:
| SIZE: 6.0 " X 4.0 " X 2.0 " |
CHANNELS: ON BOARD SELECTABLE |
| CURRENT CONSUMPTION: 2000 mA/ 12 V |
N OR SMA ANTENNA CONNECTOR |
| RF POWER: 5 W |
RANGE 16 MILES FROM THE AIR |
| AUDIO INPUT 300 m V |
FREQUENCY: 1,700 MHz- 1,900 MHz |
|
| |
|
|

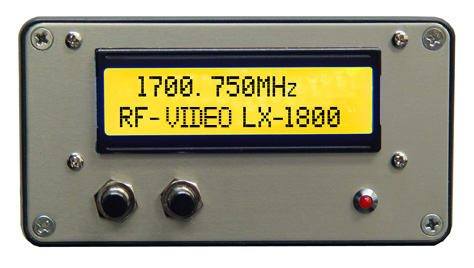

NEW VIDEO TRANSMITTER FOR 1600 - 1800 MHz WITH DIGITAL DISPLAY |
The new 1.6 - 1.8 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This transmitter has a DIGITAL DYSPLAY to access any frequency in 1.6 GHz - 1.8 GHz band. The RF power output is 1.5 W across the band. The frequency step is 250 KHz, the last dialed channel is always memorized in case that power goes off.
Dimensions: 6.0 " X 4.0 " X 2.0 ".
SPECIFICATIONS:
| SIZE: 6.0 " X 4.0 " X 2.0 " |
PAL, NTSC SYSTEM |
| CURRENT CONSUMPTION: 800 mA / 12 V |
SMA ANTENNA CONNECTOR |
| RF POWER: 1.5 W |
RANGE OVER 6 km LOS |
| AUDIO LEVEL: 300 m V |
FREQUENCY: 1,600 - 1,800 MHz |
|
| |
|
|
NEW VIDEO TRANSMITTER FOR 1700 - 1900 MHz WITH DIGITAL DISPLAY |
The new 1.7 GHz - 1.9 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This transmitter has a DIGITAL DYSPLAY to access any frequency in 1.7 GHz - 1.9 GHz band. The RF power output is 1.5 W across the band. The frequency step is 250 KHz, the last dialed channel is always memorized in case that power goes off.
Dimensions: 6.0 " X 4.0 " X 2.0 ".
SPECIFICATIONS:
| SIZE:6.0 " X 4.0 " X 2.0 " |
PAL, NTSC SYSTEM |
| CURRENT CONSUMPTION: 800 mA / 12 V |
SMA ANTENNA CONNECTOR |
| RF POWER: 1.5 W |
RANGE OVER 6 km LOS |
| AUDIO INPUT 300 m V |
FREQUENCY: 1,700 MHz- 1,900 MHz |
|
| |
|
|
NEW VIDEO TRANSMITTER FOR 1700 - 1900 MHz WITH DIGITAL DISPLAY |
The new 1.7 GHz - 1.9 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This transmitter has a DIGITAL DYSPLAY to access any frequency in 1.7 GHz - 1.9 GHz band. The RF power output is 1.5 W across the band. The frequency step is 250 KHz, the last dialed channel is always memorized in case that power goes off.
Dimensions: 6.0 " X 4.0 " X 2.0 ".
SPECIFICATIONS:
| SIZE:6.0 " X 4.0 " X 2.0 " |
PAL, NTSC SYSTEM |
| CURRENT CONSUMPTION: 4,500 mA / 12 V |
N OR SMA ANTENNA CONNECTOR |
| RF POWER: MAX. 14 V |
RANGE: 16 MILES FROM THE AIR |
| DC VOLTAGE: 12 V |
FREQUENCY: 1,700 MHz- 1,900 MHz |
|
| |
|
|
5 W AUDIO/VIDEO TRANSMITTER LX-1700/5B MIL FOR 1700-1900 MHz BAND 8 CHANNELS |
The new 1.7 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This transmitter has 8 easy to change channels and 5 W RF power. This video transmitter works from 12 V- 16 V.
Dimensions: 6.0 " X 4.0 " X 2.0 "
SPECIAL ORDER AVAILABLE FOR MILITARY FORCES ONLY, SORRY NO EXPORT OUT OF THE USA
SPECIFICATIONS:
| SIZE:6.0 " X 4.0 " X 2.0 " |
PAL, NTSC SYSTEM |
| CURRENT CONSUMPTION: 1,500 mA / 12 V |
N OR SMA ANTENNA CONNECTOR |
| RF POWER: 5 W/ 12 V |
RANGE: 16 MILES FROM THE AIR |
| AUDIO LEVEL: 5 V |
FREQUENCY: 1,700 MHz- 1,900 MHz |
|
| |
|
|

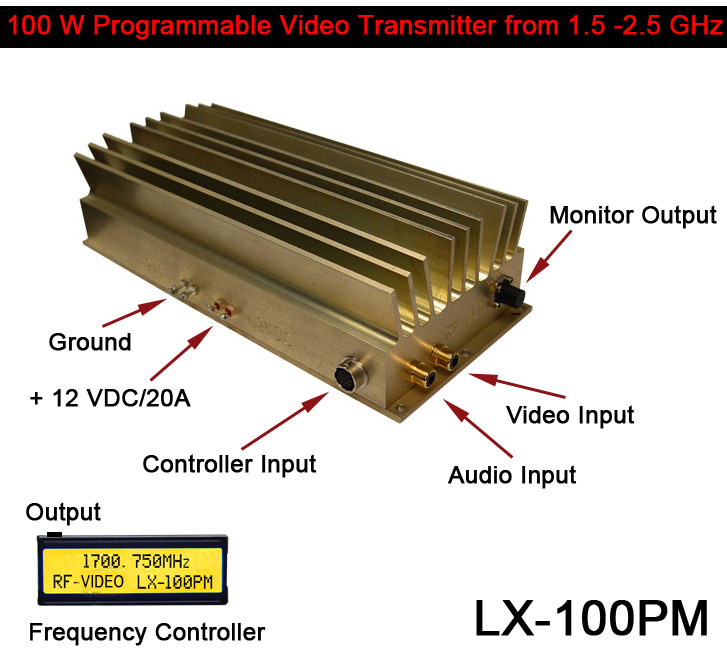

PROGRAMMABLE 100 W AUDIO/VIDEO TRANSMITTER LX-100PM FOR 1700-1900 MHz BAND |
The new 1.7 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. The new 100 W PROGRAMMABLE 1.7 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This video transmitter gives over 100 W RF power. This special audio/video transmitter is fully programmable from 1,690 MHz- 1,900 MHz. It has been designed for Aeronautic, Space experiments or Special Military applications. This audio/video transmitter must be mounted on a larger metal surface to cool it down. The special LCD programmer is included with the unit. This transmitter works from 12 VDC/ 22A.
Dimensions: 9.0 " X 2.5. " X 3.9 ".
SPECIAL ORDER AVAILABLE FOR MILITARY FORCES ONLY, SORRY NO EXPORT OUT OF THE USA
SPECIFICATIONS:
| SIZE: 9.0 " X 2.5. " X 3.9 " |
PAL, NTSC SYSTEM |
| CURRENT CONSUMPTION: 22A / 12 VDC |
SMA ANTENNA CONNECTOR |
| BATTERY POWER: 12.6 V |
RANGE: OVER 60 km LOS |
| AUDIO INPUT 300 m V |
FREQUENCY: 1,730 MHz- 1,850 MHz |
|
| |
|
|
|
