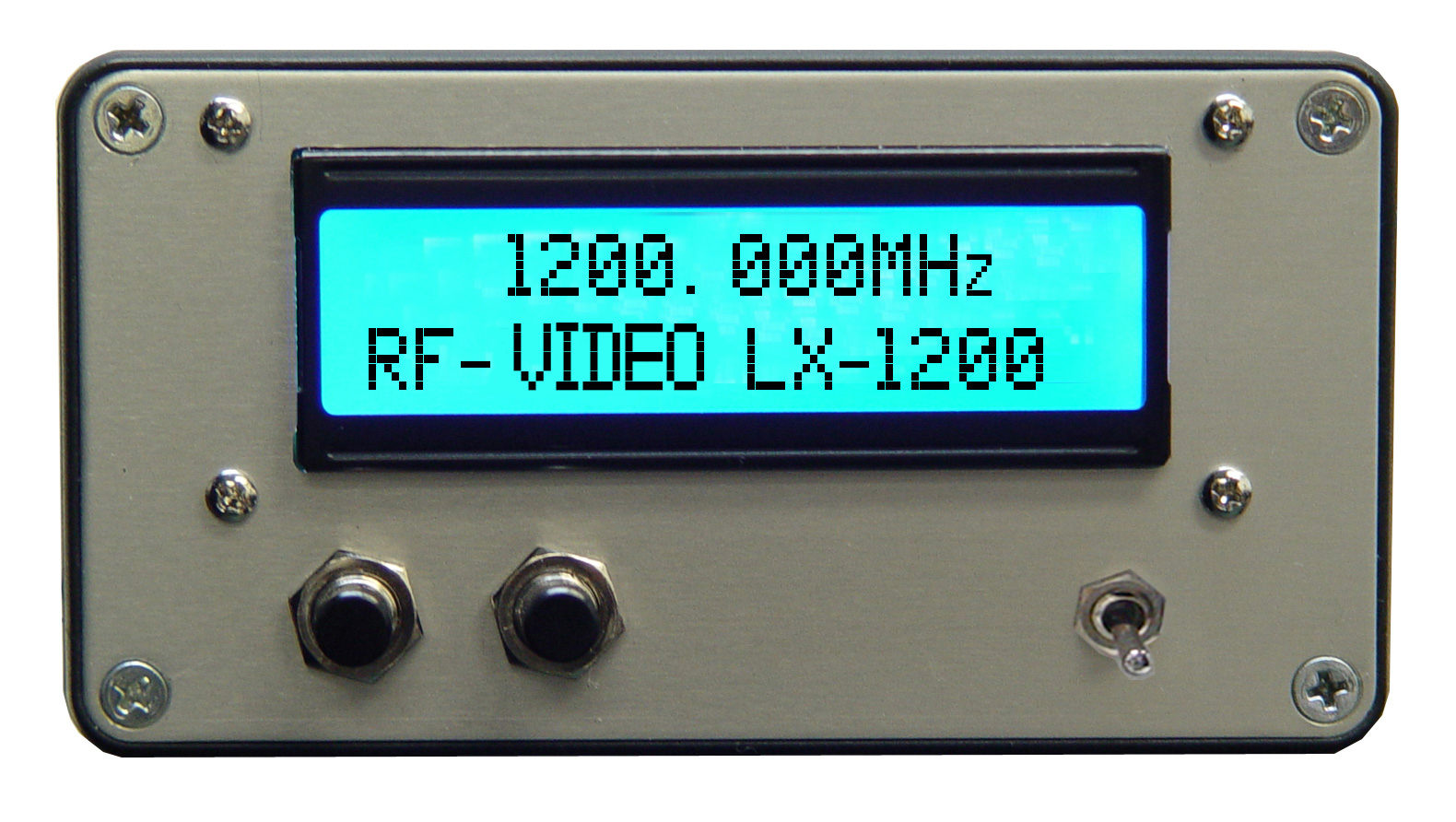

NEW VIDEO TRANSMITTER FOR 1200 MHz WITH DIGITAL DISPLAY |
The new 1.2 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This transmitter has digital display with change channels and 1.5 W RF power. LX-1200 works from 9 V- 16 V.
Dimensions: 6.0 " X 4.0 " X 2.0 "
SPECIFICATIONS:
| OPERATING FREQUENCY: 1200-1400 MHz |
RF POWER: 1.5 W |
| DC VOLTAGE: 12V - 14V |
SIZE: 6.0 " X 4.0 " X 2.0 " |
| NTSC, PAL SYSTEMS |
SMA ANTENNA CONNECTOR |
| IMPEDANCE: 50 ohms |
RANGE UP TO: 1over 6 km LOS |
| CURRENT CONSUMPTION: 1000 mA / 12 V |
SIZE: 6.0" X 4.0" X 2.0" |
|
| |
|
|
NEW VIDEO TRANSMITTER FOR 1200 MHz WITH DIGITAL DISPLAY |
The new 1.2 GHz Audio/Video transmitter is a special design for Military applications capable to work in extremely low or high temperature range. This transmitter has digital display with easy to change the frequency and 5W RF power. Transmitter LX-1200H works from 9 V- 16 V.
Dimensions: 6.0 " X 4.0 " X 2.0 " .
SPECIFICATIONS:
| OPERATING FREQUENCY: 1200-1400 MHz |
RF POWER: 5 W |
| DC VOLTAGE: 12V - 14V |
SIZE: 6.0 " X 4.0 " X 2.0 " |
| NTSC, PAL SYSTEMS |
SMA ANTENNA CONNECTOR |
| IMPEDANCE: 50 ohms |
RANGE UP TO: 1over 6 km LOS |
| CURRENT CONSUMPTION: 1500 mA / 12 V |
SIZE: 6.0" x 4.0" x 2.0" |
|
| |
|
|
|
