Model:MTR-8000

Data sheet PDF

SPECIAL MORNITOR RECEIVER MTR-8000 UHF BAND 420-916 MHz

The newest UHF audio/video receiver with LCD TFT screen module for any UHF TV transmitter is a perfect solution for any professional user and commercial application as well. This receiver can pick-up any TV channel in UHF AIR BAND from CH 14 UHF TO 69 UHF or even Cable channels (also small CH 59 cable video transmitters). It works up to 900 MHz Required power supply is 9 V- 12 V DC/ 280 mA. Video formats : 4:3 and 16:9.
Dimensions: 4.5. " X 3.0 " X 1.2 ".

SPECIFICATIONS:

POWER SUPPLY : 9 V-12 V	CHANNELS: FROM CH14 - CH69
FREQUENCY: 420 - 916 MHz	SIZE: 4.5. " X 3.0 " X 1.2 "
DC POWER: 12 VDC/ 120 mA

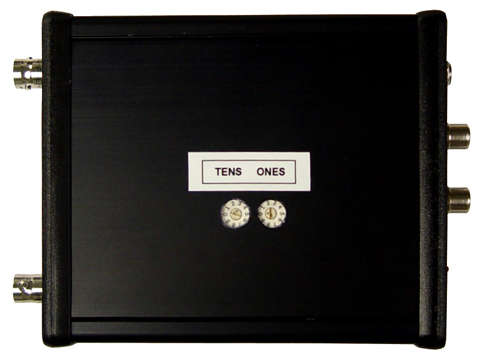

Model:M-1000

Model:M-1000 PAL

Data sheet PDF

SPECIAL DIVERSITY AUDIO/VIDEO RECEIVER M-1000 UHF BAND 400-900 MHz

The newest Diversity audio/video receiver module for any UHF TV transmitter is a perfect solution for professional Steadicam users. This receiver can pick-up any TV channel in UHF AIR BAND from CH 14 UHF TO 69 UHF or even Cable channels (also small CH 59 cable video transmitters). It works up to 900 MHz Required power supply is 9 V- 12 V DC/ 220 mA. This receiver has a special diversity circuit for the best signal reception and two separate antenna inputs
Dimensions: 4.5. " X 3.0 " X 1.2 ".

SPECIFICATIONS:

POWER SUPPLY : 9 V-12 V	CHANNELS: FROM CH 14 - CH69 UHF
FREQUENCY: 420 - 928 MHz	SIZE: 4.5. " X 3.0 " X 1.2 "
DC POWER: 12 VDC/ 120 mA

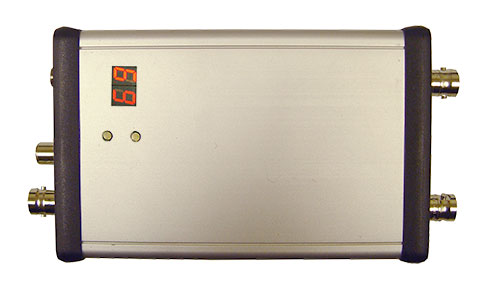

Model:M-1000LED

Data sheet PDF

SPECIAL DIVERSITY AUDIO/VIDEO RECEIVER M-1000 UHF BAND 400-900 MHz

The newest Diversity audio/video receiver module for any UHF TV transmitter is a perfect solution for professionals and special applications. This receiver can pick-up any TV channel in UHF AIR BAND from CH 14 UHF TO 69 UHF or even Cable channels (also small CH 59 cable video transmitters). It works up to 900 MHz Required power supply is 9 V- 12 V DC/ 220 mA. This receiver has built-in a digital display to show the channel in UHF number. It also has a special diversity circuit for the best signal reception and two separate antenna inputs
Dimensions: 4.9 " X 4.1 " X 1.1 ".

SPECIFICATIONS:

POWER SUPPLY : 9 V-12 V	CHANNELS: FROM CH 14 - CH69 UHF
FREQUENCY: 420 - 928 MHz	SIZE: 4.9. " X 4.1 " X 1.1 "
DC POWER: 12 VDC/ 220 mA

Model:m-806

Model:m-806 pal

Data sheet PDF

WORLD'S SMALLEST AUDIO/VIDEO STEADICAM VIDEO RECEIVER M-806

The World's smallest audio/video receiver module for any UHF TV transmitter is a perfect solution for professional Steadicam users. This receiver can pick-up any TV channel in UHF AIR BAND from CH 14 UHF TO 69 UHF or even Cable channels (also famous CH 59 cable video transmitters). Required power supply is 9 V- 12 V DC/ 160 mA.
Dimensions: 3.0 " X 2.4 " X 1.0 ".

SPECIFICATIONS:

BATTERY OPERATED: 6 V-12 V	CHANNELS: FROM CH14 - CH69
FREQUENCY: 471 - 801 MHz	SIZE: 3.0 " X 2.4 " X 1.0 "
CURRENT CONSUMPTION: 150 mA	NTSC SYSTEM
ANTENNA CONNECTOR: F TYPE

M-806

Model:M-806R

Model:M-806R PAL

Data sheet PDF

WORLD'S SMALLEST AUDIO/VIDEO STEADICAM VIDEO RECEIVER M-806R

The World's smallest audio/video receiver module for any UHF TV transmitter is a perfect solution for professional Steadicam users. This receiver can pick-up any TV channel in UHF AIR BAND from CH 14 UHF TO 69 UHF or even Cable channels (also famous CH 59 cable video transmitters). Required power supply is 9 V- 12 V DC/ 160 mA. Model M-806/R has easy to use switching selector for TV channels.
Dimensions: 3.0 " X 2.4 " X 1.0 "

SPECIFICATIONS:

POWER SUPPLY : 9 V-12 V	CHANNELS: FROM CH14 - CH69 UHF
CURRENT CONSUMPTION: 150 mA	SIZE: 3.0 " X 2.4 " X 1.0 "
NTSC SYSTEMS	F TYPE ANTENNA CONNECTOR
AUDIO OUTPUT: 300 mV

Model:M-806b

Data sheet PDF

WORLD'S SMALLEST AUDIO/VIDEO STEADICAM VIDEO RECEIVER M-806B

The World's smallest audio/video receiver module for any UHF TV transmitter is a perfect solution for professional Steadicam users. This receiver can pick-up any TV channel in UHF AIR BAND from CH 14 UHF TO 69 UHF or even Cable channels (also famous CH 59 cable video transmitters). Required power supply is 9 V- 12 V DC/ 160 mA. Model M-806B has a BNC connector for video output.
Dimensions: 3.0 " X 2.4 " X 1.0 ".

SPECIFICATIONS:

BATTERY OPERATED : 6 V-12 V	CHANNELS: FROM CH14 - CH69 UHF
CURRENT CONSUMPTION: 150 mA	SIZE: 3.0 " X 2.4 " X 1.0 "
NTSC SYSTEMS	F TYPE ANTENNA CONNECTOR
BNC CONNECTOR

Model:M-806b special edition

Data sheet PDF

WORLD'S SMALLEST AUDIO/VIDEO STEADICAM VIDEO RECEIVER M-806R

The World's smallest audio/video receiver module for any UHF TV transmitter is a perfect solution for professional Steadicam users. This receiver can pick-up any TV channel in UHF AIR BAND from CH 14 UHF TO 69 UHF or even Cable channels (also famous CH 59 cable video transmitters). Required power supply is 9 V- 12 V DC/ 160 mA. Model M-806/R has easy to use switching selector for TV channels.
Dimensions: 3.0 " X 2.4 " X 1.0 "

SPECIFICATIONS:

BATTERY OPERATED: 6 V-12 V	CHANNELS: FROM CH14 - CH69 UHF
CURRENT CONSUMPTION: 150 mA	SIZE: 3.0 " X 2.4 " X 1.0 "
NTSC SYSTEMS	F TYPE ANTENNA CONNECTOR
AUDIO OUTPUT: 300 mV

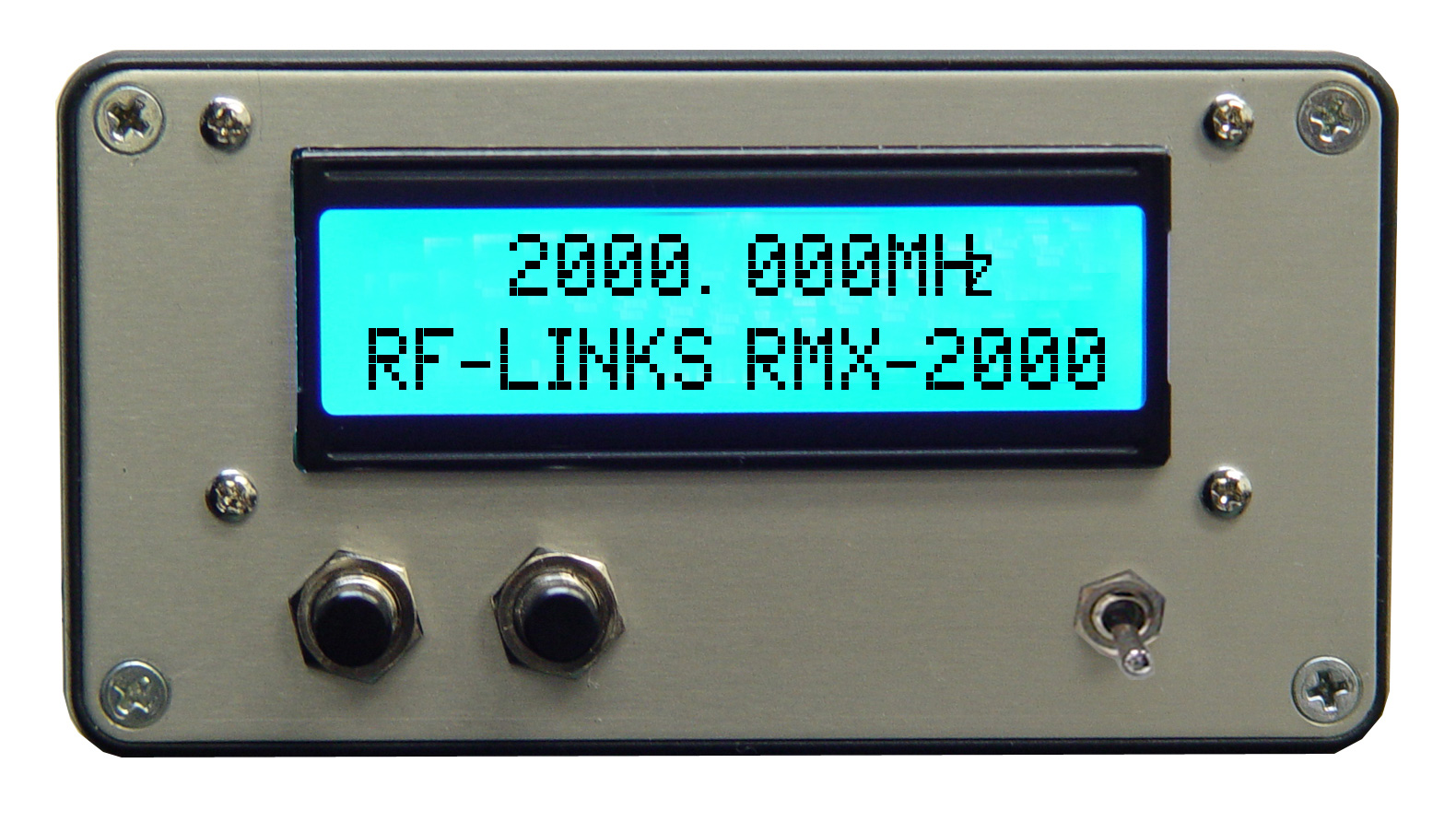

Model:rmx-2000

Data sheet PDF

RMX-2000 RECEIVER 900 - 2000 MHz WITH DIGITAL DISPLAY

RMX-2000 is the most sensitive digitaly controlled receiver for 900 MHz - 2000 MHz. Fully synthesized this receiver has an SMA connector. The freqency is easy to control from the front panel in 250 kHz step with two up/down buttons. There are thousands of available channels in the range 900 MHz - 2000 MHz.
Dimensions: 6.5 " X 4.0 " X 2.0 ".

SPECIFICATIONS:

BATTERY POWER: 12 V	CHANNELS: FROM CH14 - CH69 UHF
CURRENT CONSUMPTION: 380 mA	SIZE: 6.5 " X 4.0 " X 2.0 "
NTSC OR PAL SYSTEMS	CHANNEL STEP: 250 kHz
FREQUENCY: 900 - 2000 MHz

Model:RMX-2500

Data sheet PDF

RMX-2500 RECEIVER FOR 2.4 GHz

This is the most sensitive and definitely the best 2.4 GHz Video receiver on the market. Fully synthesized this receiver has an SMA connector for different type of antennas 2.4 GHz. This receiver is digital and you can access any frequency in 2.2 - 2.5 GHz band. The step is 125 KHz.
Dimensions: 6.5 " X 4.0 " X 2.0 ".

SPECIFICATIONS:

BATTERY POWER: 12 V	NTSC VIDEO FORMAT
CURRENT CONSUMPTION: 500 mA	SIZE: 6.5 " X 4.0 " X 2.0 "
CHANNEL STEP: 125 kHz	SMA TYPE CONNECTOR
FREQUENCY: 2.2 - 2.5 GHz

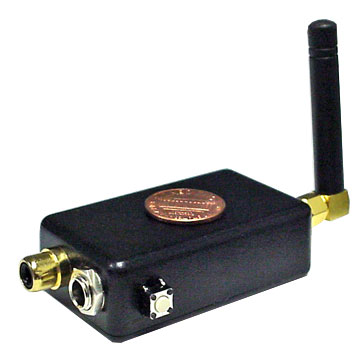

Model:RMX-3000

Data sheet PDF

RMX-3000 SMALLEST RECEIVER FOR 2.4 GHz

This is the smallest 2.4 GHz Audio/ Video receiver on the market. Fully synthesized this receiver has an SMA connector for different type of antennas 2.4 GHz. It has 4 selectable channels. This receiver works with any TV system.
Dimensions: 2.0 " X 1.2 " X 0.7 ".

SPECIFICATIONS:

BATTERY POWER : 9 V	CHANNELS: 4 SELECTABLE CHANNELS
CURRENT CONSUMPTION: 180 mA	SIZE: 2.0 " X 1.2 " X 0.7 "
NTSC OR PAL SYSTEMS	SMA TYPE CONNECTOR

Model:hdmr-54

Data sheet PDF

HDMR-54 EXCELLENT TV RECEIVER FOR 5.4 GHz

This is a special audio/video receiver with an LCD screen 4.3" for 5.4 GHz Fully synthesized this receiver has an SMA connector for different type of antennas for 5.4 GHz. This receiver has 8 preprogrammed channels. This receiver has built-in low noisepreamplifer 12 dB gain for 5.4-5.9 GHz band.
Dimensions: 4.45 " X 3.6 " X 1.2 ".

SPECIFICATIONS:

BATTERY POWER : 12 V	CHANNELS: 8
CURRENT CONSUMPTION: 455 mA	SIZE: 4.45 " X 3.6 " X 1.2 "
FREQUENCY: 5.4 GHz	SMA TYPE CONNECTOR

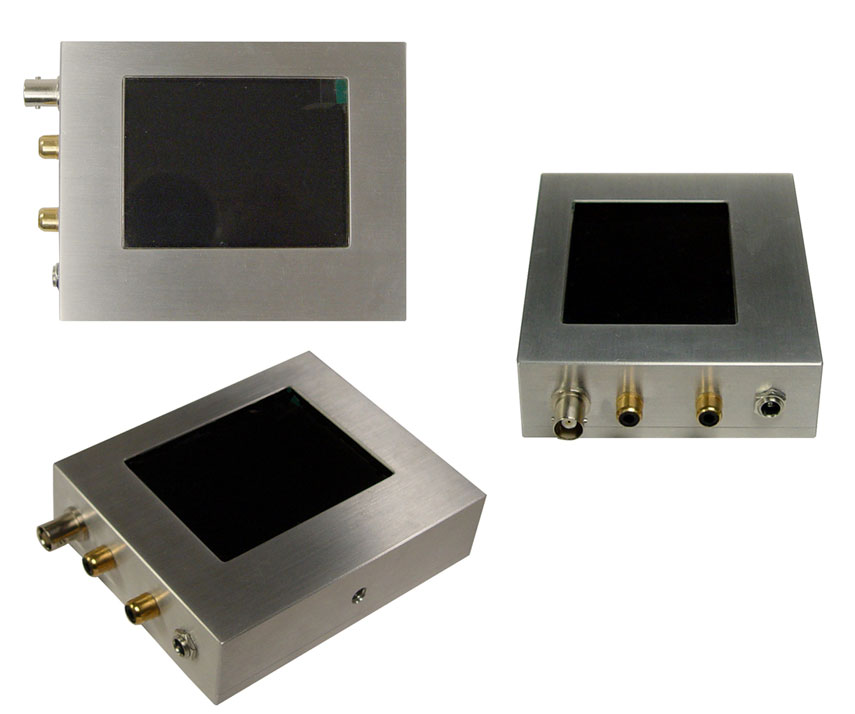

Model:HDMR-58

Data sheet PDF

HDMR-58 EXCELLENT TV RECEIVER FOR 5.8 GHz

This is a special audio/video receiver with an LCD screen 4.3" for 5.8 GHz Fully synthesized this receiver has an SMA connector for different type of antennas for 5.8 GHz. This receiver has 8 preprogrammed channels. This receiver has built-in low noisepreamplifer 12 dB gain for 5.4-5.9 GHz band.
Dimensions: 4.45 " X 3.6 " X 1.2 ".

SPECIFICATIONS:

BATTERY POWER : 12 V	CHANNELS: 8
CURRENT CONSUMPTION: 455 mA	SIZE: 4.45 " X 3.6 " X 1.2 "
FREQUENCY: 5.8 GHz	SMA TYPE CONNECTOR

Model:RMX-6000B

Data sheet PDF

RMX-6000B EXCELLENT RECEIVER FOR 5.8 GHz ALL FREQUENCIES

This is a special audio/video receiver for 5.8 GHz continuos from 5.70 GHz - 6.00 GHz. Fully synthesized this receiver has an SMA connector for different type of antennas for 5.8 GHz.The frequency step is 250 kHz with built-in fast scanning function. This receiver has built-in low noise preamplifer 12 dB gain for 5.7-5.9 GHz.
Dimensions: 6.0 " X 4.0 " X 2.0 ".

SPECIFICATIONS:

BATTERY POWER : 12 V	CHANNEL STPE: 250 kHz
CURRENT CONSUMPTION: 395 mA	SIZE: 6.0 " X 4.0 " X 2.0 "
FREQUENCY: 5.7 - 6.0 GHz	SMA TYPE CONNECTOR

Model:R-820

Data sheet PDF

RECEIVER 2.4 GHz WITH LCD DISPLAY

The newest receiver R-820 is the most sensitive receiver with LCD display for 2.4 GHz -2.5 GHz band. It is easy to use and works from 6 V- 12 V DC power / 500 mA! This small TV set has direct Video/Audio outputs. Antenna is integral.
Dimensions: 4.5 " X 2.7 " X 0.8 ", 2.5 "Screen

SPECIFICATIONS:

DC POWER : 6 - 12 V	SCREEN SIZE: 2.5"
CURRENT CONSUMPTION: 500 mA	SIZE: 4.5 " X 2.7 " X 0.8 "
FREQUENCY: 2.4 - 2.5GHz

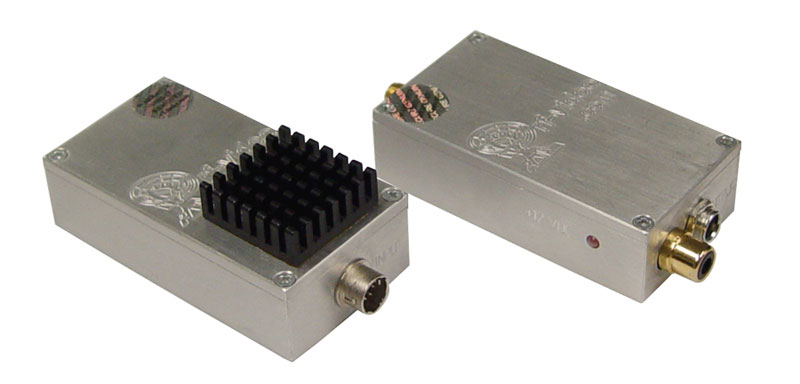

Transmitter & Receiver pair

Model:LX-5600C

Model: :RMX-5600C

Data sheet PDF

SPECIAL SINGLE CHANNEL VIDEO TRANSMITTER & RECEIVER PAIR 5644.75 MHz - DEMO

New Microwave Transmitter and Receiver are fully synthesized single channel items (5,644.750 MHz). The RF power output power is 200 mW. They are great for low range communication up to 2500 ft LOS or experiments.

Dimensions: 2.8 " X 1.5 " X 0.75 ".

SPECIFICATIONS FOR TRANSMITTER:

BATTERY POWER: 12 V-14.4 V	SINGLE CHANNEL
CURRENT CONSUMPTION: 350 mA / 12 V	SIZE: 2.8 " X 1.5 " X 0.75 "
NTSC AND PAL	RF POWER OUTPUT: 200mW / 50ohms

SPECIFICATIONS FOR RECEIVER:

DC VOLTAGE: 9-12 V	SINGLE CHANNEL
CURRENT CONSUMPTION: 350 mA / 12 V	SIZE: 2.8 " X 1.5 " X 0.75 "
VIDEO LEVEL: 1 V	RF POWER LEVEL: 94 dBuV/m@3m

Model:WRX-4466

Data sheet PDF

SPECIAL VIDEO RECEIVER FOR 4400 - 6600 MHz BAND

This special Wideband receiver will give you opportunity to monitor any frequency from 4400 MHz- 6600 MHz. Fully synthesized this World's smallest Microwave receiver is perfect for monitoring high frequency video band. It is fully portable, extremely sensitive and easy to use. You can simply press UP/DOWN button to change the frequency.

Dimensions: 2.8 " X 1.5 " X 0.75 ".

SPECIFICATIONS:

BATTERY POWER : 12 V	PAL OR NTSC SYSTEM
CURRENT CONSUMPTION: 250 mA	SIZE: 2.8 " X 1.5 " X 0.75 "
FREQUENCY: 4400 - 6600 MHz	SMA TYPE CONNECTOR
