RMXD2500

Model:RMXD-2500
Data sheet PDF pdf
Buy Online

8 CHANNEL VIDEO RECEIVER FOR 2.4 GHz - 2.5 GHz

This is the most sensitive and definitely the best 2.4 GHz Video receiver on the market. This real Diversity receiver has 2 tuners and a processor to choose the best signal. Fully synthesized this receiver has two SMA connectors for 2.4 GHz antennas This receiver is analog and you can access any frequency in 2.3 - 2.5 GHz band.

Dimension: 6.0 " X 4.0 " X 1.2 ".

SPECIFICATIONS:
BATTERY POWER: 9 V FREQUENCY: 2.3 - 2.5 GHz
ANTENNA CONNECTOR: SMA SIZE: 6.0" X 4.0" X 1.2"
CURRENT CONSUMPTION: 695 mA


rmx-2500

Model:RMX-2500
Data sheet PDF pdf
Buy Online

RMX-2500 RECEIVER FOR 2.4 GHz

This is the most sensitive and definitely the best 2.4 GHz Video receiver on the market. Fully synthesized this receiver has an SMA connector for different type of antennas 2.4 GHz. This receiver is digital and you can access any frequency in 2.2 - 2.5 GHz band. The step is 125 KHz.
Dimensions: 6.5 " X 4.0 " X 2.0 ".

SPECIFICATIONS:
BATTERY POWER: 12 V FREQUENCY: 2.2 - 2.5 GHz
CURRENT CONSUMPTION: 500 mA SIZE: 6.5 " X 4.0 " X 2.0 "
VIDEO FORMAT: NTSC SYSTEMS CHANNEL STEP: 125 kHz


RMX-3000

Model:RMX-3000
Data sheet PDF pdf
Buy Online

RMX-3000 SMALLEST RECEIVER FOR 2.4 GHz

This is the smallest 2.4 GHz Audio/ Video receiver on the market. Fully synthesized this receiver has an SMA connector for different type of antennas 2.4 GHz. It has 4 selectable channels. This receiver works with any TV system.
Dimensions: 2.0 " X 1.2 " X 0.7 ".

SPECIFICATIONS:
BATTERY POWER: 9 V-12 V AUDIO OUTPUT: 300 mV
VIDEO OUT: 1V PEP SIZE: 2.0" X 1.2" X 0.7 "
CURRENT CONSUMPTION: 138 mA SMA ANTENNA CONNECTOR
4 CHANNELS IN 2.4 GHz- 2.5 GHz BAND


VRX-24L

Model:VRX-24L
Data sheet PDF pdf
encryption model
Buy Online

VRX-24L RECEIVER 2.4 GHz

This is the most sensitive and definitely the best 2.4 GHz Audio/ Video receiver on the market. Fully synthesized this receiver has an SMA connector for different type of antennas 2.4 GHz. It has 8 selectable channels. To access more info about 2.4 GHz receivers please click here. This receiver works with any TV system.
Dimensions: 5.6 " X 2.5 " X 0.8 ".

SPECIFICATIONS:
BATTERY POWER: 9 V-12 V SMA ANTENNA CONNECTOR
VIDEO OUTPUT: 1V PEP SIZE: 5.7" X 2.5" X 0.8 "
CURRENT CONSUMPTION: 250 mA! SMA ANTENNA CONNECTOR


VRX-24LZ

Model:VRX-24LZ

Data sheet PDF pdf
Buy Online

SPECIAL VIDEO RECEIVER FOR 2.4 GHz

The new Military Grade 2.4 GHz Audio/video receiver VRX-24LZ has excellent performances and it is the most sensitive receiver for 2.4 GHz band on the market! VRX-24LZ has 8 selectable channels in 2.30 GHz - 2.50 GHz frequency range. The power supply is 9-12V/300 mA. Antenna connector is an SMA type. The VRX-24LZ also can be used as a receiving part for a repeater station. Model VRX-24LZ has built-in filters for 2.4 GHz band and bandwidth is 16 MHz! This special receiver can pick-up Government frequencies in lower 2.4 GHz band to eliminate interferences.

SPECIFICATIONS:
BATTERY POWER: 9 V-12 V CURRENT CONSUMPTION: 250 mA!
VIDEO OUTPUT: 1V PEP SIZE: 5.7" X 2.5" X 0.8 "
CHANNEL SELECTABLE IN 2.3 - 2.5 GHz SMA ANTENNA CONNECTOR
SENSITIVITY -92 dBm TWO AUDIO OUTPUTS


VRX-24LZ

Model:VRX-24LFM

Data sheet PDF pdf
ENCTYPTION IS OPTIONAL
Buy Online

VRX-24LFM RECEIVER 2.4 GHz

This is the most sensitive and definitely the best 2.4 GHz Audio/ Video receiver on the market. Fully synthesized this receiver has an SMA connector for different type of antennas 2.4 GHz. It has 8 selectable channels. To access more info about 2.4 GHz receivers please click here. This receiver works with any TV system. Recommended for the Government agencies.
Dimensions: 5.6 " X 2.5 " X 0.8 ".

SPECIFICATIONS:
BATTERY POWER: 12 V/ 300mV CURRENT CONSUMPTION: 280 mA!
VIDEO OUTPUT: 1V PEP SIZE: 5.7" X 2.5" X 0.8 "
CHANNEL SELECTABLE IN 2.3 - 2.5 GHz SMA ANTENNA CONNECTOR
SENSITIVITY -92 dBm OPERATING FREQUENCY:


VRX-24LTM

Model:VRX-24LTM

Model:VRX-24LTG

Data sheet PDF pdf
Buy Online

SPECIAL VIDEO RECEIVER FOR MONITORING 2.4 GHz BAND

This small receiver will give you opportunity to monitor 2.4 GHz video band. Simply hook-up this receiver to any video monitor. It is fully portable, extremely sensitive and easy to use. You can get any frequency in 2300- 2500 MHz band by turning super precision multi turn potentiometer. This receiver has built-in a special AFT (Automatic frequency tuning) control function for the best stability.
Dimensions: 4.3 " X 2.8 " X 1.0 ".

SPECIFICATIONS:
BATTERY POWER: 9 V-12 V FREQUENCY: 2.30 - 2.50 GHz
VIDEO OUT: 1V PEP SIZE: 4.5" X 2.8" X 1.2 "
CURRENT CONSUMPTION: 180 mA SMA ANTENNA CONNECTOR


VRX-24LTS

Model:VRX-24LTS

Data sheet PDF pdf
Buy Online

SPECIAL VIDEO RECEIVER FOR 2.4 GHz

The newest 2.4 GHz Audio/video receiver VRX-24LTS has excellent performances and it is the most sensitive receiver for 2.4 GHz band on the market! VRX-24LTS has fully tunable function in 2.39 GHz - 2.50 GHz frequency range. Video output is 75 ohms standard for any TV monitor. VRX 24LTS has built-in sound demodulator. The power supply is 9-12V/180 mA. Antenna connector is an SMA type. The VRX-24LTS is excellent solution for mobile use. You can easy and fast scan all video/audio transmitters in 2.4 GHz band by connecting this receiver to any TV monitor.

SPECIFICATIONS:
BATTERY POWER: 9 V-12 V FREQUENCY: 2.39 - 2.5 GHz
VIDEO OUTPUT: 1V PEP SIZE: 4.5" X 2.8" X 1.7 "
CURRENT CONSUMPTION: 180 mA SMA ANTENNA CONNECTOR


VRX-24LQ

Model:VRX-24LQ

Data sheet PDF pdf
Buy Online

VRX-24LQ RECEIVER 2.4 GHz

The newest receiver VRX 24 LQ is the most sensitive receiver with a tunable function to access any frequency in 2.3 GHz -2.5 GHz band. This receiver has built-in a SIGNAL STRENGTH meter. Receiver VRX-24LQ is a low power unit. It is easy to use and works from 10 V- 14 V DC power / 280 mA! This receiver works with any TV system.
Dimensions: 4.5 " X 2.8 " X 1.7 ".

SPECIFICATIONS:
BATTERY POWER: 12 V/ 180mA FREQUENCY: 2.3 - 2.5 GHz
CURRENT CONSUMPTION: 280 mA/ 9V SIZE: 4.5" X 2.8" X 1.7 "
CHANNELS: ANY SMA ANTENNA CONNECTOR


VRX-24DY

Model:VRX-24DY

Data sheet PDF pdf
Buy Online

VRX-24DY DIVERSITY RECEIVER 2.4 GHz

The newest diversity receiver VRX-24DY is the most sensitive receiver with a tunable function to access any frequency in 2.3 GHz -2.5 GHz band. This receiver has built-in a SIGNAL STRENGTH meter. Receiver VRX-24DY is a low power unit. It is easy to use and works from 10 V- 14 V DC power / 280 mA! This receiver works with any TV system.
Dimensions: 4.5 " X 2.8 " X 1.7 ".

SPECIFICATIONS:
BATTERY POWER: 12 V/ 180 mA FREQUENCY: 2.3 - 2.5 GHz
PAL, NTSC SYSTEM SIZE: 4.5" X 2.8" X 1.7 "
CURRENT CONSUMPTION: 280 mA/ 9V 2 SMA ANTENNA CONNECTORS

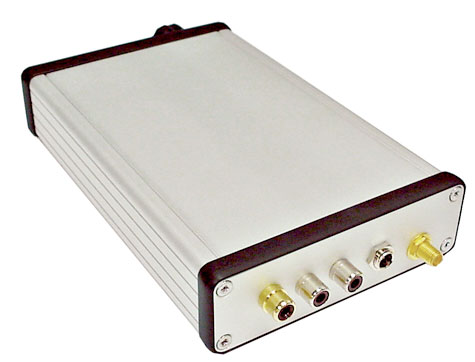

VRX-24LTS/M

Model:VRX-24LTS/M

Data sheet PDF pdf
encryption model
Buy Online

SPECIAL VIDEO RECEIVER FOR 2.4 GHz

The newest Military Grade 2.4 GHz Audio/video receiver VRX-24LTS/M has excellent performances and it is the most sensitive receiver for 2.4 GHz band on the market! VRX-24LTS/M has fully tunable function in 2.2 GHz - 2.50 GHz frequency range. Video output is 75 ohms standard for any TV monitor. VRX 24LTS/M has built-in sound demodulator. The power supply is 9-12V/200 mA. Antenna connector is an SMA type. The VRX-24LTS is excellent solution for mobile use. You can easy and fast scan all video/audio transmitters in 2.4 GHz band by connecting this receiver to any TV monitor.

SPECIFICATIONS:
BATTERY POWER: 9 V-12 V FREQUENCY: 2.2 - 2.5 GHz
POWER SUPPLY: 9 - 12V/ 200mA SIZE: 4.5" X 3.6" X 1.0 "
CURRENT CONSUMPTION: 200 mA SMA ANTENNA CONNECTOR


R-820

Model:R-820

Data sheet PDF pdf
Buy Online

RECEIVER 2.4 GHz WITH LCD DISPLAY

The newest receiver R-820 is the most sensitive receiver with LCD display for 2.4 GHz -2.5 GHz band. It is easy to use and works from 6 V- 12 V DC power / 500 mA! This small TV set has direct Video/Audio outputs. Antenna is integral.
Dimensions: 4.8 " X 2.8 " X 0.8 ", 2.5 " Screen

SPECIFICATIONS:
BATTERY POWER: 6 V-12 V FREQUENCY: 2.4 - 2.5 GHz
NTSC SYSTEM SIZE: 4.8 " X 2.8 " X 0.8 "
CURRENT CONSUMPTION: 500 mA/ 9 V


RC-820

Model:RC-820

Data sheet PDF pdf
Buy Online

RECEIVER 2.4 GHz WITH LCD DISPLAY

The newest receiver RC-820 is the most sensitive receiver with LCD display for 2.3 GHz -2.4 GHz band. It is easy to use and works from 6 V- 12 V DC power / 500 mA! This small TV set has direct Video/Audio outputs. SMA antenna connector. Batteries are rechargable.
Dimensions: 4.8 " X 2.8 " X 0.8 ", 2.5 " Screen

SPECIFICATIONS:
BATTERY POWER: 6 V-12 V FREQUENCY: 2.3 - 2.4 GHz
NTSC SYSTEM SIZE: 4.8 " X 2.8 " X 0.8 "
CURRENT CONSUMPTION: 500 mA/ 9 V SMA F CONNECTOR
