The new model UHF Video transmitter was designed for Steadicam users or TV and Film production. This unit out performs all kinds of video senders on the market. Range is up to 600 ft line-of-sight under ideal conditions. This transmitter has excellent color picture quality. This video transmitter has all channels in TV UHF band from CH 14 - CH 69 UHF. It is easy to change the channel with dip-switches.
Dimensions: 2.75 " X 1.5 " X 0.75 ".
Audio channel is available on request, $100.00 extra.

Model IGX-68 /HR is with Hirosi DC power connector.

This is the most sensitive and definitely the best 2.4 GHz Video receiver on the market. Fully synthesized this receiver has an SMA connector for different type of antennas 2.4 GHz. This receiver is digital and you can access any frequency in 2.2 - 2.5 GHz band. The step is 125 KHz.
Dimensions: 6.5 " X 4.0 " X 2.0 ".

Recommended for Government agencies. 5W transmitter with 8 channel receiver, 2 special antennas 9.5 dB gain LOG3/GR, Capacity: 1 video/2 audio channels. Operating frequency: synthesized. This link is Professional and it is recommended for special applications or video surveillance . It is made for long distances - up to 20 miles line-of-sight. Frequency setting is internal.
Dimensions:
Receiver: 7.5 " X 11 " X 3.5 ".
Transmitter: 7.5 " X 11 " X 3.5 ".

This is the special 2.4 GHz video transmitter-a high power unit. This transmitter was built using the latest technology. The size of this transmitter is just amazing: 0,5 X 0.5" X 0,12"exactly. Complete unit is built on high quality multi layer PC board. The picture is broadcast quality. This video transmitter has audio carrier and channel selector on board. You can transmit to 4 channels in 2.4 Ghz- 2.5 Ghz band.
Dimensions: 0.5 " X 0.5 " X0.12 ".

Model SDX-26 A on request is available in 4 channels from 2.3 GHz- 2.4 GHz. 4 Channels switch is located on board.
Model SDX-26 B works from 2.4 GHz - 2.5 GHz.

Note: This unit requires a special receiver with built-in deemphasis filter. If you are using a different kind of receiver you might not get good picture quality. Please purchase our receiver VRX series with the transmitter.

RF-links introduces the smallest tracking transmitter. It is the smallest tracking transmitter of it's kind. The range of this little unit is amazing - over 1 mile LOS or 5 miles from the AIR with a special receiver and high gain antenna. It is excellent for covert applications or experiments. This small transmitter is using VHF or UHF band. Almost any frequency is available thanks to a special PLL microprocessor circuit. This tracking transmitter has built-in special adjustable timer 0-5 minutes. Transmitter is fully crystal controlled with amazing frequency stability (.005%). The unit is using a 3 V battery with only 0.8 mA Stand by current consumption! The battery can last very long time!
Dimensions: 0.3 " X 0.55 " X 0.25 ".

This directional antenna is a perfect match for TV VHF transmitters. Operating Frequency: 170-180 MHz. Maximum power 1,500 W, impedance 50 ohms.

APPLICATIONS AND MEDICAL RESEARCH

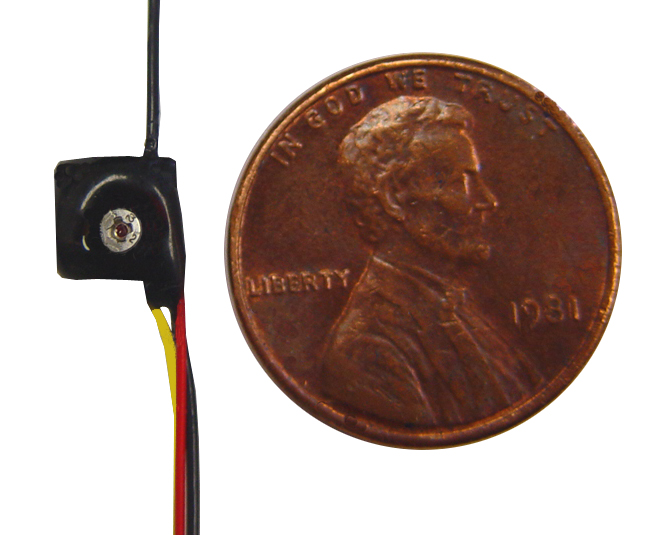

The new 1.9 GHz video transmitter is a special design for security applications and medical research. It's world's smallest size makes it the most competitive in the market.
Dimensions: 0.25" X 0.15" X 0.25".

-unit on the scale weight 0.5 grams
