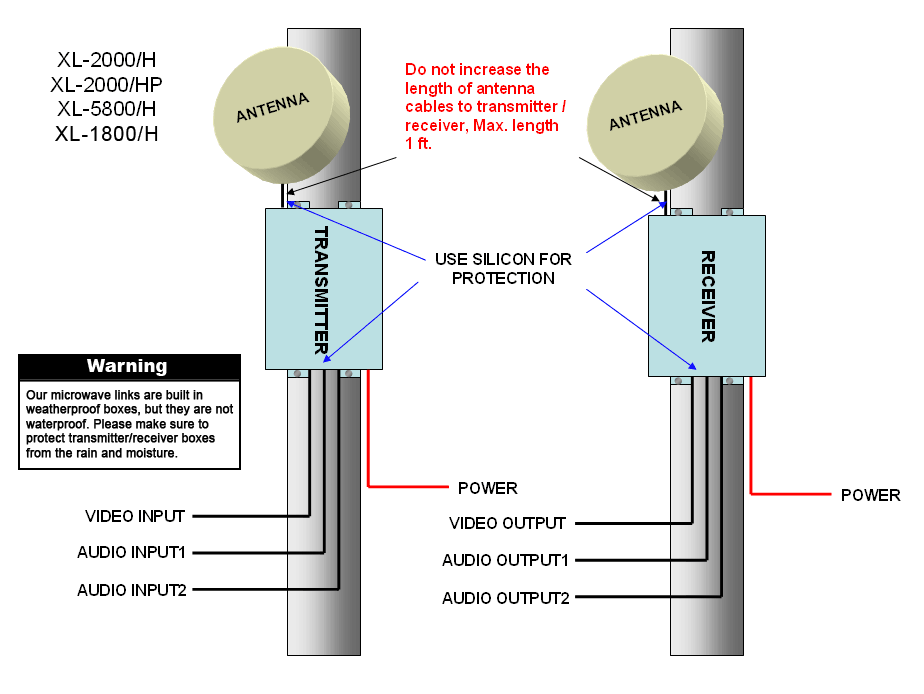

XLS-5400/H is an excellent microwave link for 5.4 GHz. It includes: 5 W transmitter with 8 selectable channels, special 8 channels receiver, 2 directional antennas PT-54 ; Capacity: 1 video and 2 audio channels; receiver has built-in low noise amplifier for increased sensitivity. Operating frequency: synthesized. This link is Professional and it is recommended for long range applications up to 20 km line-of-sight. Frequency setting is internal. Both receiver and transmitter are built in weatherproof NEMA enclosures.
Dimensions:
Receiver: 7.5 " X 11 " X 3.5 ".
Transmitter: 7.5 " X 11 " X 3.5 ".
SPECIFICATIONS (TRANSMITTER):
| DC VOLTAGE: 12 V |
OPERATING FREQUENCY: 5400 - 5480MHz |
| CHANNELS: 8 |
DIMENSIONS: 7.5: X 11" X 3.5" |
| NTSC, PAL SYSTEMS |
CURRENT CONSUMPTION: 1600 mA/ 12V |
| RANGE: 20 km + |
|
SPECIFICATIONS (RECEIVER):
| DC VOLTAGE: 12 V |
OPERATING FREQUENCY: 5400 - 5480 MHz |
| CHANNELS: 8 |
DIMENSIONS: 7.5: X 11" X 3.5" |
| ANTENNA: DIRECTIONAL 15dB INCLUDED |
CURRENT CONSUMPTION: 350mA / 12V |
| ANTENNA CONNECTOR: SMA/ N |
|
|
