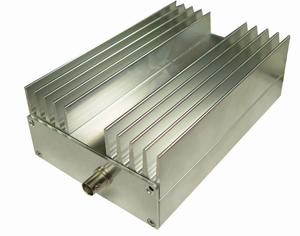

SERVICES & SUPPORT Our Lab and Engineering staff will give you an excellent service.Custom designs are available upon request. Please send your inquiries to: info@rf-video.com Model:amp-5wdtv/bx Data sheet PDF HIGH POWER TV AMPLIFIER 5 W This is our TV UHF amplifier 5 W RF power built-in a high quality box. It is fully broadband for all UHF TV channels from 470 MHz- 860 MHz. This amplifier needs 1 W RF power for the full 5 W output/50 ohms. Power supply is DC voltage 28 V /1.5A. Extremely linear this amplifier has been made for small TV stations and studios. It is ideal as an exciter for a high power TV stages. This amplifier comes assembled and tested! Power transistor is made by SGS Thompson.  Dimensions: 6.0 " X 3.0 " X 2.0" SPECIFICATIONS: FREQUENCY: 470 - 860 MHz POWER SUPPLY: 28V / 1.5A CURRENT CONSUMPTION: 890 mA SIZE: 6.0 " X 3.0 " X 2.0" INPUT/ OUTPUT CONNECTOR: SMA     Model:amp-700HP Data sheet PDF HIGH POWER AMPLIFIER 40 W AMP-700HP is a new high power UHF amplifier for 700-880 MHz band. It was originally made for Military applications. It requires only 20 mW RF power for a full 40 W power in 800 MHz band. It is excellent for 700 MHz - 800 MHz radios or Video transmitters. This amplifier has built-in low pass filter to eliminate harmonics and can be used for TV applications or TV video transmitters. Power supply is 12 V / 5 A SPECIFICATIONS: FREQUENCY: 700 - 880 MHz POWER SUPPLY: 12V / 5A CURRENT CONSUMPTION: 5 A SIZE: 6.5 " X 2.0 " X 4.0 " RF POWER: 40 W
