This is a high power broadband amplifier for labs or testing purposes. This amplifier is excellent for SUHF band 1,500 MHz- 2,500 MHz. The gain is over 43 dB. The maximum saturation power is 29 W. Minimum required driving power is only 1 mW. This amplifier can be used for lab testing or special applications since the linearity is excellent.
Dimensions: 3.0 " X 1.9 " X 5.0 ".

This amplifier operates from 1800 MHz to 2050 MHz, ideal for broadband military platforms as well as commercial applications because it is robust and offers high power over a multi-decade bandwidth. It was designed for broadband communication systems platforms It is packaged in a modular housing that is approximately 5.75 " (W) x 8.46 " (L) x 1.04 " (H). This amplifier has a typical P3dB of 80-100 watts at room temperature.
Noise figure at room temperature is 8.0 dB typical. It offers a typical gain of 52 dB with a typical gain flatness of ± 3.0 dB. The power and gain flatness across the band is very flat for the bandwidth.

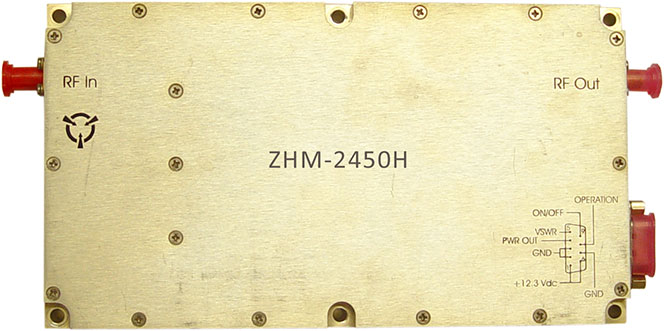

This is a medium power, super broadband RF amplifier that operates from 2350 MHz to 2450 MHz, ideal for broadband military platforms as well as commercial applications because it is robust and offers high power over an extremely large bandwidth with decent power added efficiency. It was designed for broad band communication systems platforms. It is packaged in a modular housing that is approximately 7.5" x 4.1" x 1.0". This amplifier has a typical saturated output power of 25-30 watts at room temperature. Noise figure at room temperature is 8 dB typical. It offers a typical gain of 33 dB with a typical gain flatness of ± 4.2 dB.

This is an excellent linear RF amplifier for 1.2 GHz band. It is a perfect solution for FM TV exciters, labs or experiments. Model ZH-1214 has 5 W RF power with driving input of only 10 mW. Required power supply is 12 V / 1.8 A. Gain 29 dB.
Dimensions: 6.0 " X 3.0 " X 2.0 " .

This is an excellent linear RF amplifier for 1.2 GHz band. It is a perfect solution for FM TV exciters, labs or experiments. Model ZH-1214/M has 10 W RF power with driving input of only 20 mW. Required power supply is 12 V / 3.8 A. Gain 30 dB.
Dimensions: 6.0 " X 3.0 " X 2.0 " .

This is a tested Ultra low noise (Noise figure <2.1 dB/1,9 GHz), professional 2.5 W amplifier that requires minimum driving input of 1 mW for the maximum of 2.5 W RF power output. It is broadband in 1,500 MHz- 2,200 MHz and doesn't require any tuning or adjusting. Power supply is 12 V/ 0.98 A. Gain 28 dB. SMA connectors Input / Output 50 ohms impedance. Class of operation is AB.
Dimensions: 6.0" X 3.0 " X 2.0 "

This is an excellent high power linear RF amplifier for 1.2 GHz band. It is a perfect solution for FM TV exciters, labs or experiments. It has 18 W RF power with driving input of 200 mW. Required power supply is 12 V / 8 A. Gain 20 dB. It comes with N female connectors.
Dimensions: 6.0 " X 3.0 X 2.0 "

This is a tested high quality professional 7 W amplifier that requires minimum driving input of 30 mW for the maximum of 7 W RF power output. It is broadband in 60 MHz- 90 MHz and doesn't require any tuning or adjusting. Power supply is 12 V/ 1.6 A. Gain 23 dB. SMA connectors Input / Output 50 ohms impedance. Class of operation AB.
Dimensions: 6.0" X 3.0 " X 2.0 ".

Model AMP-5800/3 is a microwave amplifier for 5.6-7.2 GHz made for Military applications. It requires only 10 mW - 50 mW RF power for a full 2.5 W power in 5.6-7.2 GHz band. Power supply is 12 V / 1.6 A. Weight 200 grams. This is an unidirectional amplifier. Gain 28dB.
Dimensions: 5.0 " X 1.6 " X 2.2 ".

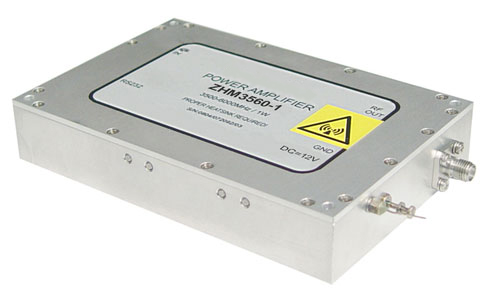

The ZHM-3560 -1 is a compact, broadband linear amplifier ideal for use in test and measurement systems and RF Lab set-up. Power supply is 13 V / 0.7 A. Gain 32dB.
Dimensions: 4.65 " X 3.07 " X 0.85 ".
