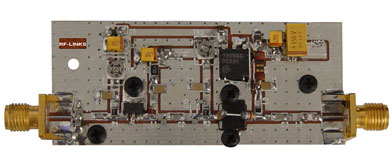

WIDEBAND LINEAR AMPLIFIER 45 MHz – 1000 MHz 2 W |
The new linear amplifier for UHF band is excellent design made for special applications, lab testing, digital and analog RF and TV applications. This amplifier works in wideband frequency range from 45 MHz- 1000 MHz It requires 12 VDC / 1.2 A. The minimum driving input is 1 mW; absolute maximum RF input is 50 mW. Rated RF power is over 2 W. It comes with BNC input / output connectors. Excellent for special Military wideban applications.
Dimensions: 6.0" X 4.0" X 2.0"
SPECIFICATIONS:
| RF POWER: 2W |
MAX. INPUT POWER: 50 mW |
| FREQUENCY: 45 MHz- 1 GHz |
SIZE: 6.0" X 4.0" X 2.0" |
| CONNECTORS: BNC INPUT/OUTPUT |
CURRENT CONSUMPTION: 12V/ 1.2A |
| OPERATING TEMPERATURE: -40 ° C to 85 ° C |
|
|
| |
|
|

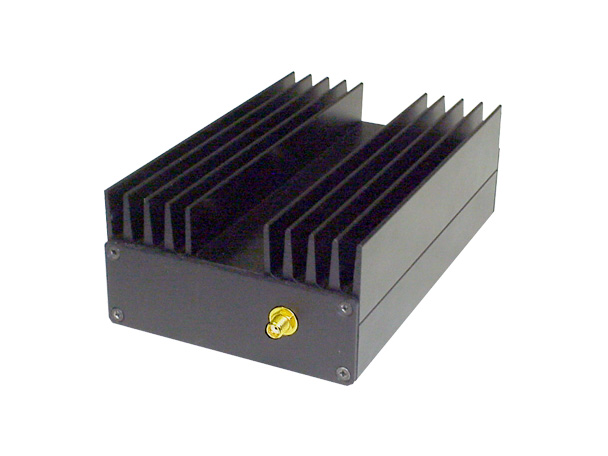

WIDEBAND LINEAR AMPLIFIER 45 MHz – 1000 MHz 7 W |
The new linear amplifier for UHF band is excellent design made for special applications, lab testing, digital and analog RF and TV applications. This amplifier works in wideband frequency range from 45 MHz- 1000 MHz It requires 12 VDC / 2 A. The minimum driving input is 1 mW; absolute maximum RF input is 50 mW. Rated RF power is over 7 W. It comes with BNC input / output connectors. Excellent for special Military wideban applications.
Dimensions: 6.0" X 4.0" X 2.0"
SPECIFICATIONS:
| RF POWER: 7W |
MAX. INPUT POWER: 50 mW |
| FREQUENCY: 45 MHz- 1 GHz |
SIZE: 6.0" X 4.0" X 2.0" |
| CONNECTORS: BNC INPUT/OUTPUT |
CURRENT CONSUMPTION: 12V/ 2A |
| OPERATING TEMPERATURE: -40 ° C to 85 ° C |
|
|
| |
|
|
LABORATORY HIGH POWER AMPLIFIER 7 W WIDEBAND FROM 60 MHz - 90 MHz |
This is a tested high quality professional 7 W amplifier that requires minimum driving input of 30 m W for the maximum of 7 W RF power output. It is broadband in 60 MHz - 90 MHz and doesn't require any tuning or adjusting. Power supply is 12 V/ 1.6 A. Gain 23 dB. SMA connectors Input / Output 50 ohms impedance. Class of operation AB.
Dimensions: 6.0 " X 4.0 " X 2.0 ".
SPECIFICATIONS:
| DC VOLTAGE : 3 V-12 V |
CLASS: LINEAR AB |
| RF POWER: 7 W |
SIZE: 6.0 " X 4.0 " X 2.0 " |
| INPUT POWER: 30 mW, max. 65 mW |
TEMPERATURE RANGE: -40 +75* C |
| ANTENNA CONNECTOR: SMA |
BUTTERY POWER: 12 V - 14 V |
| CURRENT CONSUMPTION: 1.6 A / 12 V |
OPERATING FREQUENCY: 60 MHz- 90 MHz |
|
| |
|
|
HIGH POWER AMPLIFIER 30 W WIDEBAND FROM 60 MHz - 90 MHz |
This is a tested high quality professional 30 W RF amplifier that requires minimum driving input of 50 m W for the maximum of 30 W RF power output. It is broadband in 60 MHz- 90 MHz and doesn't require any tuning or adjusting. Power supply is 12 V/ 7 A. Gain 28 dB. N female connectors Input / Output 50 ohms impedance. Class of operation AB.
Dimensions: 6.0 " X 4.0 " X 2.0 "
SPECIFICATIONS:
| BATTERY POWER: 12 V-14 V |
RF POWER: 30 W |
| INPUT POWER: 50 mW, max. 85 mW |
SIZE: 6.0 " X 4.0 " X 2.0 " |
| CLASS: LINEAR AB |
MINIMUM REQUIRED VOLTAGE: 10 V |
| DC VOLTAGE: 12 V |
CURRENT CONSUMPTION: 7.0 A/12 V |
|
| |
|
|
HIGH POWER AMPLIFIER 7 W WIDEBAND FROM 400 MHz - 470 MHz |
This is a tested high quality professional 7 W RF amplifier that requires minimum driving input of 10 m W for the maximum of 7 W RF power output. It is broadband in 400 MHz- 470 MHz and doesn't require any tuning or adjusting. Power supply is 12 V/ 1.6 A. Gain is 26 dB. N female connectors Input / Output 50 ohms impedance. Class of operation AB
Dimensions: 6 " X 4 " X 2 ".
SPECIFICATIONS:
| BATTERY POWER: 12 V-14 V |
RF POWER: 7 W |
| INPUT POWER: 10 mW, max. 50 mW |
SIZE: 6 " X 4 " X 2 " |
| CLASS: LINEAR AB |
MINIMUM REQUIRED VOLTAGE: 10 V |
| DC VOLTAGE: 12 V |
CURRENT CONSUMPTION: 1.8 A max / 12 V |
| FREQUENCY RANGE: 400-470 MHz |
|
|
| |
|
|
HIGH POWER AMPLIFIER 7 W WIDEBAND FROM 400 MHz - 470 MHz GAIN 45 DB |
This is a tested high quality professional 7 W RF amplifier that requires minimum driving input of 1 m W for the maximum of 7 W RF power output. It is broadband in 400 MHz- 470 MHz and doesn't require any tuning or adjusting. Power supply is 12 V/ 1.6 A. Gain is 45 dB. N female connectors Input / Output 50 ohms impedance. Class of operation AB
Dimensions: 6 " X 4 " X 2 ".
SPECIFICATIONS:
| BATTERY POWER: 12 V-14 V |
RF POWER: 7 W |
| INPUT POWER: 10 mW, max. 50 mW |
SIZE: 6 " X 4 " X 2 " |
| CLASS: LINEAR AB |
MINIMUM REQUIRED VOLTAGE: 10 V |
| DC VOLTAGE: 12 V |
CURRENT CONSUMPTION: 1.6 A max / 12 V |
| FREQUENCY RANGE: 400-470 MHz |
|
|
| |
|
|
HIGH POWER AMPLIFIER 60 W WIDEBAND FROM 400 MHz - 470 MHz |
This is a tested high quality professional 60 W RF amplifier that requires minimum driving input of 30-50 m W for the maximum of 60 W RF power output. It is broadband in 400 MHz- 470 MHz and doesn't require any tuning or adjusting. However, the power output can be adjusted on request. Power supply is 12 V/ 6.8 A. Gain is 26 dB. N female connectors Input / Output 50 ohms impedance. Class of operation AB
Dimensions: 6 " X 4 " X 2 ".
SPECIFICATIONS:
| BATTERY POWER: 12 V-14 V |
RF POWER: 60 W |
| INPUT POWER: 10 mW, max. 50 mW |
SIZE: 6 " X 4 " X 2 " |
| CLASS: LINEAR AB |
MINIMUM REQUIRED VOLTAGE: 10 V |
| DC VOLTAGE: 12 V |
CURRENT CONSUMPTION: 6.8 A / 12 V |
| FREQUENCY RANGE: 400 MHz- 470 MHz |
IMPEDANCE: 50 ohms |
|
| |
|
|
HIGH POWER AMPLIFIER 20 W WIDEBAND FROM 880 MHz - 960 MHz |
This is a tested high quality professional 20 W RF amplifier that requires minimum driving input of 50 m W for the maximum of 20 W RF power output. It is broadband in 880 MHz- 960 MHz and doesn't require any tuning or adjusting. The power output can be adjusted on request to the lower level. Power supply is 12 V/ 6.8 A. Gain 26 dB. N female connectors Input / Output 50 ohms impedance. Class of operation AB
Dimensions: 6 " X 4 " X 2 ".
SPECIFICATIONS:
| BATTERY POWER: 12 V-14 V |
RF POWER: 20W |
| INPUT POWER: 10 mW, max. 50 mW |
SIZE: 6 " X 4 " X 2 " |
| CLASS: LINEAR AB |
MINIMUM REQUIRED VOLTAGE: 10 V |
| DC VOLTAGE: 12 V |
CURRENT CONSUMPTION: 6.8 A / 12 V |
| FREQUENCY RANGE: 880 MHz- 960 MHz |
IMPEDANCE: 50 ohms |
|
| |
|
|
HIGH POWER AMPLIFIER 60 W WIDEBAND FROM 400 MHz - 470 MHz |
This is a tested high quality professional 60 W RF amplifier that requires minimum driving input of 30-50 m W for the maximum of 60 W RF power output. It is broadband in 400 MHz- 470 MHz and doesn't require any tuning or adjusting. However, the power output can be adjusted on request. Power supply is 12 V/ 6.8 A. Gain is 26 dB. N female connectors Input / Output 50 ohms impedance. Class of operation AB
Dimensions: 6 " X 4 " X 2 ".
SPECIFICATIONS:
| BATTERY POWER: 12 V-14 V |
RF POWER: 60 W |
| INPUT POWER: 10 mW, max. 50 mW |
SIZE: 6 " X 4 " X 2 " |
| CLASS: LINEAR AB |
MINIMUM REQUIRED VOLTAGE: 10 V |
| DC VOLTAGE: 12 V |
CURRENT CONSUMPTION: 6.8 A / 12 V |
| FREQUENCY RANGE: 400 MHz- 470 MHz |
IMPEDANCE: 50 ohms |
|
| |
|
|
HIGH POWER AMPLIFIER 20 W FOR 900 MHz |
A new high power UHF amplifier for 900 MHz was made for Military applications. It requires only 20 mW RF power for a full 20 W power in 900 MHz band. It is excellent for 900 MHz radios or data transmitters. Power supply is 12 V / 4.6 A. Weight is 350 grams.
Dimensions: 6.0 " X 4.0 " X 3.0 ".
SPECIFICATIONS:
| BATTERY POWER: 12 V |
RF POWER: 20 W |
| INPUT POWER: 20 mW |
SIZE: 6 " X 4 " X 3 " |
| CLASS: LINEAR AB (A) |
HIGH GAIN: 26 dB / 900 MHz |
| IMPEDANCE: 50 ohms |
CURRENT CONSUMPTION: 5 A |
| FREQUENCY RANGE: 902 MHz- 908 MHz |
|
|
| |
|
|
|
