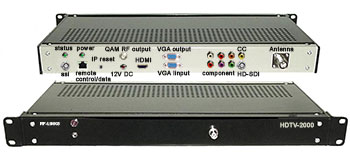

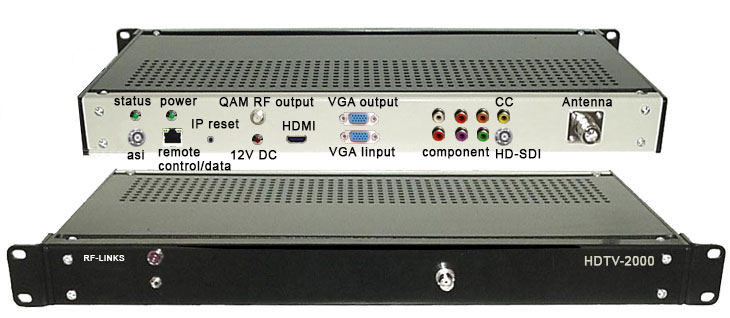

New Digital UHF Video Transmitter model HDTV-2000 is a fully synthesized audio/video transmitter for UHF band from 25 MHz-1000 MHz. It is a special designed unit that covers the wide UHF frequency range. The picture you can pick using any digital ready TV set. The RF power output power is adjustable from 100 mW – 1 W (5W depends on model). It sends a crisp HD color picture and sound up to 6,500 ft or more using the special high gain antennas. This transmitter will encode a single uncompressed program derived from devices with SDI, HD, HDMI, Component Video, Composite Video or VGA outputs to HD MPEG2 video. It supports 480i, 480p, 720p and 1080i resolutions.

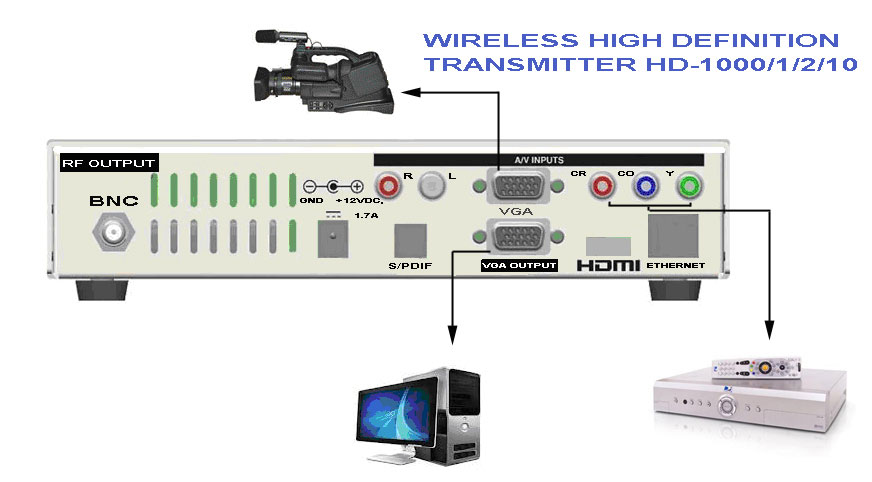

New Digital UHF Video Transmitter model HD-1000C is a fully synthesized audio/video transmitter for UHF band from 25 MHz-1000 MHz. It is a Commercial grade unit that covers the wide frequency range. The picture you can pick using any digital ready TV set. The RF power output power is 100 mW. It sends a crisp color picture and sound up to 500 ft. This transmitter will encode a single uncompressed program derived from devices with HDMI, Component Video or VGA outputs to HD MPEG2 video. It supports 480i, 480p, 720p and 1080i resolutions. This transmitter accepts Component Video signal, also it has built-in a Composite Video input, and VGA input as well.

This TV audio-video transmitter is an excellent broadcast solution for small TV stations, monitoring or experiments. It is fully synthesized and broadband for UHF channels 14- 69. Power output is 1000 mW / 50 ohms. Video level is adjustable. It has built-in power supply 115V.

This TV audio-video transmitter is an excellent broadcast solution for small TV stations, monitoring or experiments. It is fully synthesized and broadband for UHF channels 21- 61. Power output is 1000 mW / 50 ohms. Video level is adjustable. It has built-in power supply 220V.

The newest UHF TV transmitter TVX-560/1 covers UHF TV channels from CH 14 -CH 27. It has adjustable power output level from 20 mW- 1 W. This is the best available low power unit on the market. TVX-560/1 has built-in filters for UHF band. Not available in PAL.

Complete TV transmitting system - ready to use, excellent for start - for a small TV studios, special wireless presentations, churches, shows, concerts etc...

Here is a complete solution: all you need to start your own TV station- Professional TV transmitter-contains High Quality Professional TV exciter, Professional TV amplifier in A class 2 W RF power, antenna, cable...

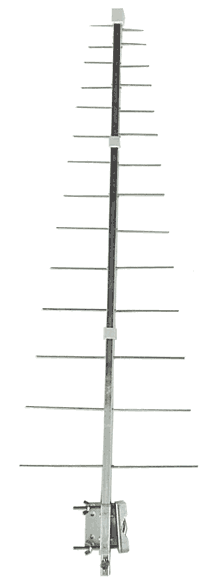

TVX-560/ 2 is a special vestigial PLL TV transmitter for all TV UHF channels from CH 14 - CH 27 UHF. This transmitter has adjustable high power output level from 50 mW- 2 W. High gain antenna SL-806, cable and connectors are included. Range is over 6 km in the open area.

Complete TV transmitting system - ready to use, excellent for start - for a small TV studios, special wireless presentations, churches, shows, concerts etc...

Here is a complete solution: all you need to start your own TV station- Professional TV transmitter-contains High Quality Professional TV exciter, Professional TV amplifier in A class 25 W RF power, antenna, cable...

TVX-560/ 20 is a special vestigial PLL TV transmitter for all TV UHF channels from CH 14 - CH 27 UHF. This transmitter has adjustable high power output level from 50 mW- 25 W. High gain antenna LP-806, cable and connectors are included. Range is over 10 km in the open area.

Complete TV transmitting system - ready to use, excellent for start - for a small TV studios, special wireless presentations, churches, shows, concerts etc...

Here is a complete solution: all you need to start your own TV station- Professional TV transmitter-contains High Quality Professional TV exciter, Professional TV amplifier in A class 50 W RF power, antenna, cable...

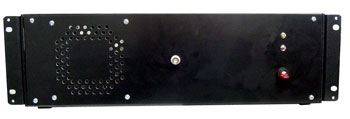

TVX-560/ 50 is a special vestigial PLL TV transmitter for all TV UHF channels from CH 14 - CH 27 UHF. This transmitter has adjustable high power output level from 50 mW- 50 W. High gain antenna LP-806, cable and connectors are included. Range is over 16 km in the open area.

Matching antenna.Model: LOG-250

TVX-225/1 is an VHF TV transmitter with high level power output for all VHF TV channels from CH 7-12. It is a single channel unit- please choose desired channel. It has adjustable high power output level from 50 mW- 1W. The transmitter comes with two 19" rack mount units: exciter and power amplifier 1W. Antenna connector is an BNC type. RF amplifier is temperature and VSWR protected.

Matching antenna.Model: LOG-250

TVX-225/5 is an VHF TV transmitter with high level power output for all VHF TV channels from CH 7-12. It is a single channel unit- please choose desired channel. It has adjustable high power output level from 50 mW- 5W. The transmitter comes with two 19" rack mount units: exciter and power amplifier 5 W. Antenna connector is an BNC type. RF amplifier is temperature and VSWR protected.

Matching antenna.Model: LOG-250

TVX-225/20 VHF TV transmitter with high level power output for all VHF TV channels from CH 7-12. It is a single channel unit- please choose desired channel. It has adjustable high power output level from 50 mW- 20 W. The transmitter comes with two 19" rack mount units: exciter and power amplifier 20 W. Antenna connector is an BNC type. RF amplifier is temperature and VSWR protected.

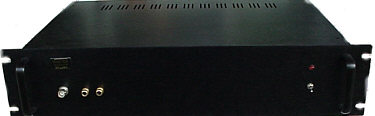

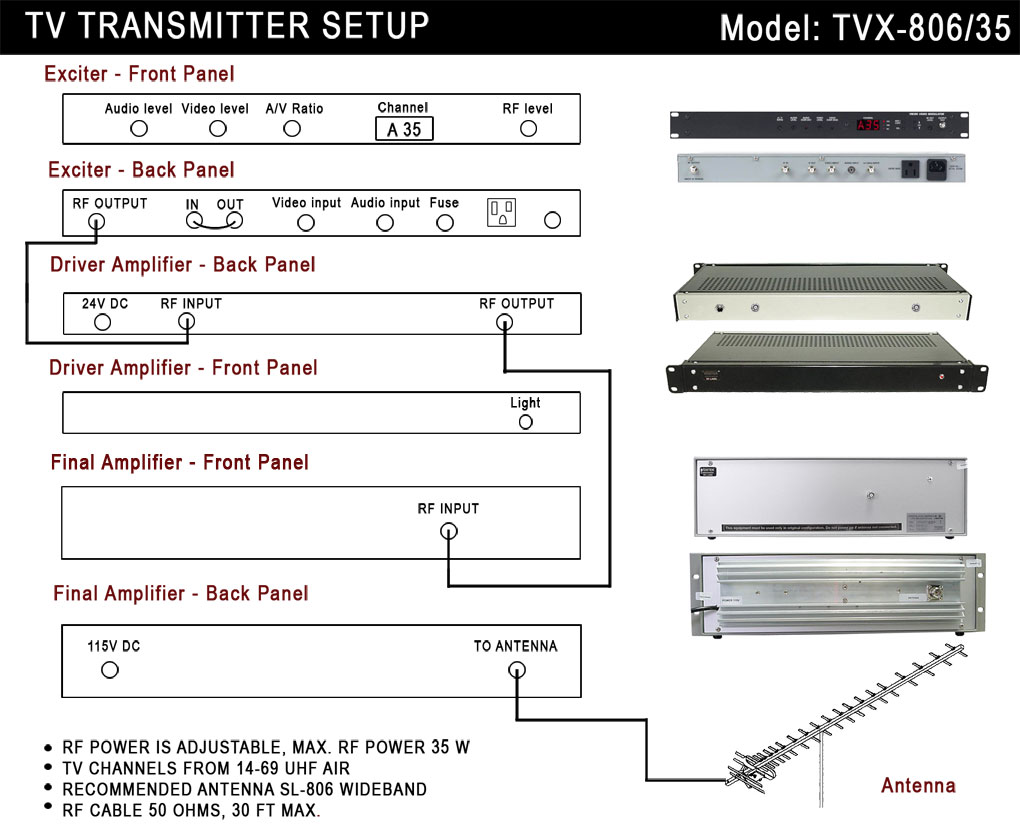

TV transmitter TVX-806 has been made for small TV studios and it has 2 W (Model TVX-806/2), 5W (Model TVX-806/5) -( new model) or 35 W (Model TVX-806/35). Fully professional this unit will send a perfect Color picture and sound. Antenna output is N- female type (BNC for TVX-806/2 model).Recommended antenna is Panel type - directional 11 dB gain for all UHF channels from CH 14- 69. Channel selection is external. The unit is thermal protected and with a VSWR protection as well. The range of this transmitter can be over 10 miles with antenna mounted at least 30 ft above ground. Antenna is not included in price.Please specify desired channel for the best performance.

MODEL: TVX-806/2 (PAL) MODEL: TVX-806/5 (PAL)

MODEL: TVX-806/35 (PAL) MODEL: TVX-806/50 (PAL)

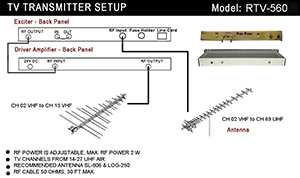

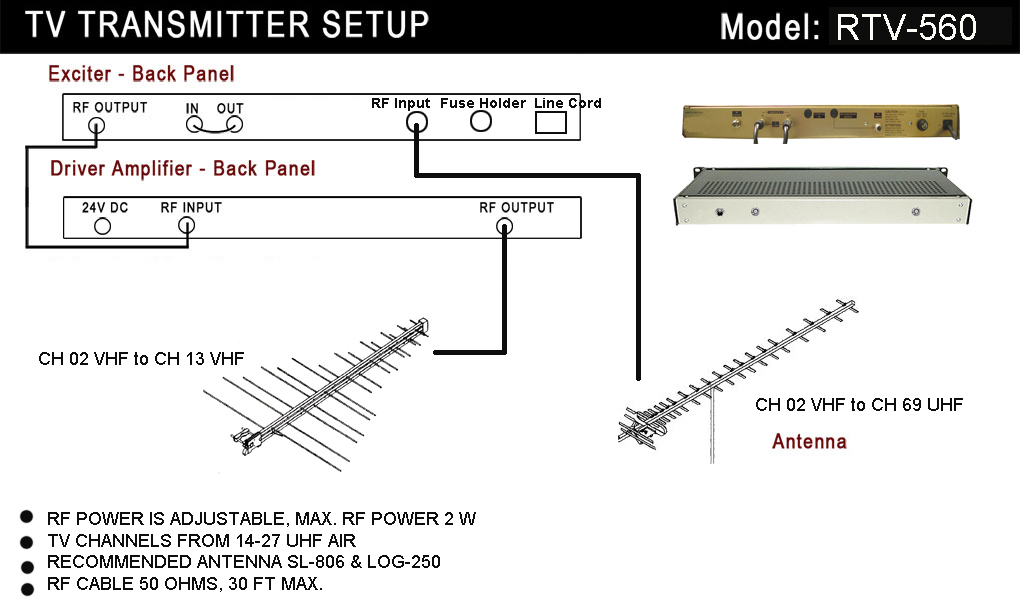

TV Repeater RTV-560 has been made for small TV studios and it has 2 W (Model RTV-560/2V), 5W (Model RTV-560/5V) or 35 W (Model RTV-560/35V). It is a high quality, frequency agile channel processor capable of converting any VHF or UHF off-air signal to any standard output channel from CH 02 VHF-13 VHF. Input and output frequencies are easily set with front panel pushwheel switches. A/V ratio and output level controls are also provided along with IF loop-thru connections to offer exceptional flexibility. Also you can purchase models RTV-560/2U, (2 W RF power output), RTV-560/20U (20 W RF power), (translate any VHF or UHF channel to UHF band from Channel 14-69. This is an NTSC model, PAL repeaters are available on special request.
Fully professional this unit will send a perfect Color picture and sound. Antenna output is N- female type (BNC for RTV-560/2V model). This repeator unit is thermaly protected and with a VSWR protection as well. The range of this TV Translator can be over 10 - 25 miles or more, with antenna mounted at least 50 ft above the ground. Antenna is not included.

Model AVX-2/UHF is a professional TV linear amplifier in A class with 2 W RF output power and only 20 mW input power. It is recommended as a driving amplifier for high power stages or small TV stations. This linear amplifier works from 470 MHz-860 MHz and it is perfect for Analog or Digital TV broadcast applications.

Model AVX-5/UHF is a professional TV linear amplifier in A class with 5 W RF output power and 1W input power. It is recommended as a driving amplifier for high power stages or small TV stations. This linear amplifier is perfect for audio amplifications as well. This linear amplifier works from 470 MHz-860 MHz and it is perfect for Analog or Digital TV broadcast applications.

Model AVX-20/UHF is a professional TV linear amplifier in A class with 20 W RF output power and only 25mW input power. It is recommended as a driving amplifier for high power stages or small TV stations. This linear amplifier is perfect for audio amplifications as well. This linear amplifier works from 470 MHz-560 MHz and it is perfect for Analog or Digital TV broadcast applications. .

Model AVX-35/UHF is a new professional TV linear amplifier in A class with 35 W RF output power and only 4W input power. This amplifier is using latest technology with built-in switching power supply. This amplifier is recommended as a driver for high power stages or small TV stations. This linear amplifier works from 470 MHz-860 MHz and it is perfect for Analog or Digital TV broadcast applications.

Model AVX-50/UHF is a new professional TV linear amplifier in A class with 50 W RF output power and only 4W input power. This amplifier is using latest technology with built-in switching power supply. It is light (weights only 10 lb) unit. This amplifier is recommended as a driver for high power stages or small TV stations. This linear amplifier works from 470 MHz-860 MHz and it is perfect for Analog or Digital TV broadcast applications.

Model AVX-20/VHF is a professional TV linear amplifier in A class with 25 W RF output power and 3 mW input power. It is recommended as a driving amplifier for high power stages or small TV stations. This linear amplifier works from 175 MHz-225 MHz and it is perfect for Analog or Digital TV broadcast applications.

Model AVX-60/VHF is a professional TV linear amplifier in A class with 60 W RF output power and 3W input power. It is recommended as a driving amplifier for high power stages or small TV stations. This linear amplifier works from 175 MHz-225 MHz and it is perfect for Analog or Digital TV broadcast applications.

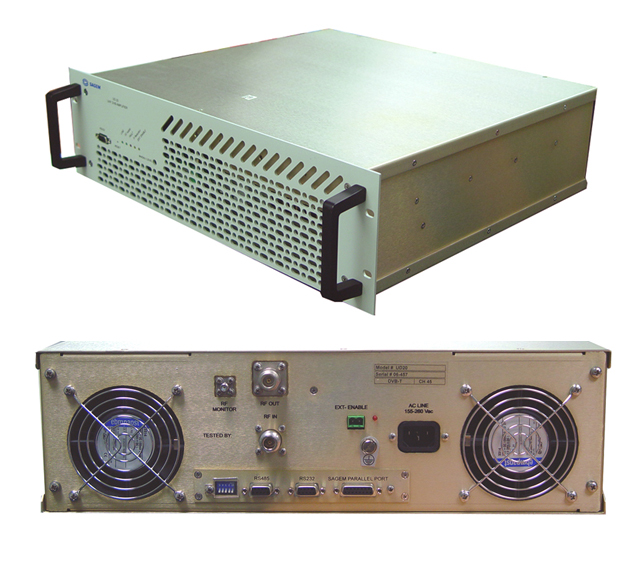

This is a peak sync UHF Power Amplifier. Completely based on LDMOS technology, it is designed
for both analog and digital applications. The unit is the state of the art in terms of easy assembly, reliability and performance. A RS232 connector is also available in the front panel to allow for a serial interface connection for remote control (modem, computer). This mechanical structure has been designed for modularity, which makes servicing easier and faster. This linear amplifier works from 470 MHz-860 MHz and it is perfect for Analog or Digital TV broadcast applications.

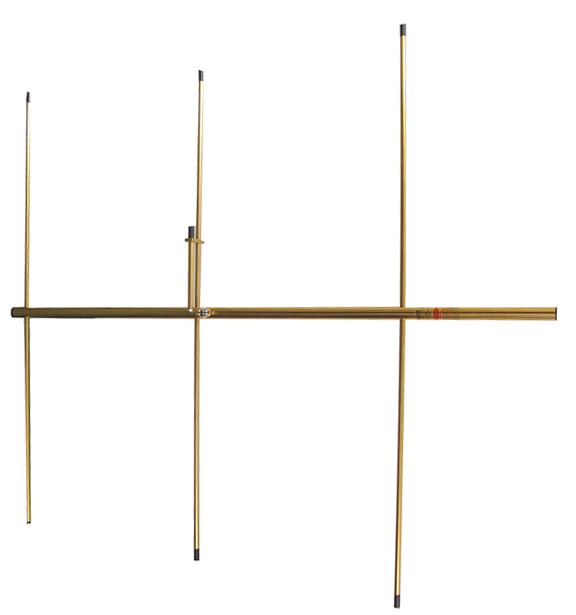

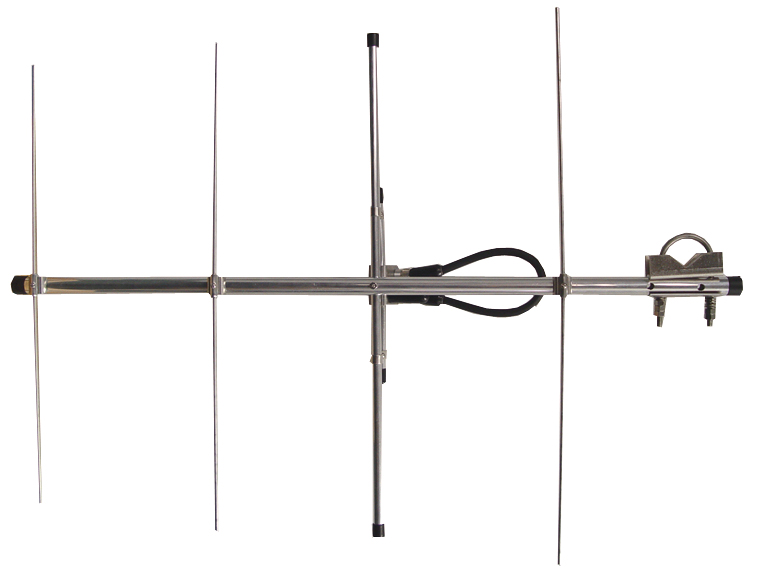

This directional antenna is a perfect match for TV VHF transmitters. Operating Frequency: 175-250 MHz. Maximum power 1,500 W, impedance 50 ohms.

This directional antenna is a perfect match for TV VHF transmitters. Operating Frequency: 170-180 MHz. Maximum power 1,500 W, impedance 50 ohms.

This directional antenna is a perfect match for TV UHF transmitters. It covers UHF TV channels 14-69

This directional antenna is a perfect match for TV VHF and UHF transmitters. It covers the frequency range from 175 MHz - 860 MHz.(all VHF and UHF TV channels 06-69). This antenna comes reassembled.
Dimensions: 46"x 35"

This omni-directional antenna is a perfect match for TV UHF transmitters. It covers the frequency range from 470 MHz - 502 MHz.(UHF TV channels 14-19)
Dimensions: 18.0 " X 1.0 " X 0.5 ".

TV UHF range CH 53 - CH 65
N connector
Mounting bracket included
Max power 60 W
50 ohms impedance
Excellent VSWR <1.4
Max wind load100 km/h
Vertical or horizontal polarization

Panel antenna LT-860 will give you an excellent extended range and 9.0 dB gain in 470 MHz - 860 MHz band. This antenna can be used for both- transmitters and receivers in TV Band. Antenna LT-860 has an BNC connector.Please check pdf file.
Dimensions: 11 " X 10 " X 0.1 ".

Panel antenna LT-860 will give you an excellent extended range and 11.0 dB gain in 470 MHz - 860 MHz band. This antenna can be used for both- transmitters in TV Band. Antenna LT-860 has an BNC connector.Please check pdf file.
Dimensions: 41 " X 18 " X 9 ".

4-Way antenna splitter is recommended for 4 - bay antenna systems in UHF band. MAX. power input 300 W, impedance 50 ohms.
Dimensions: 7 " X 4 " X 3 ".

2-Way antenna splitter is recommended for 4 - bay antenna systems in UHF band. MAX. power input 150 W, impedance 50 ohms.
Dimensions: 6 " X 4 " X 2 ".

This is the World's first unique High power Portable TV UHF transmitter for all UHF channels. It is an excellent transmitter easy to use it on a field. No special installation required. It comes with a Omni directional antenna AD-4786 for all UHF channels. This is a high power video transmitter 40 W with MIL specs. The transmitter was built in a special weatherproof box, it is very simple to use and doesn't require any special tuning. The range is excellent, tested over 20 miles LOS. The signal can be picked up with any NTSC TV set. Special PAL transmitter is available on request. This transmitter is fully portable and can be supplied with car battery 12 VDC.

Size: 9.5"x 3"x8.5"

This video transmitter gives over 25 W RF power in 61.25 MHz (CH3 TV). This portable video transmitter has excellent prformances and great range (over 10 miles with a good antenna). It is fully mobile and works with 12 VDC (car battery).
Dimensions: 10.0 " X 4.0 " X 3.0 ".
